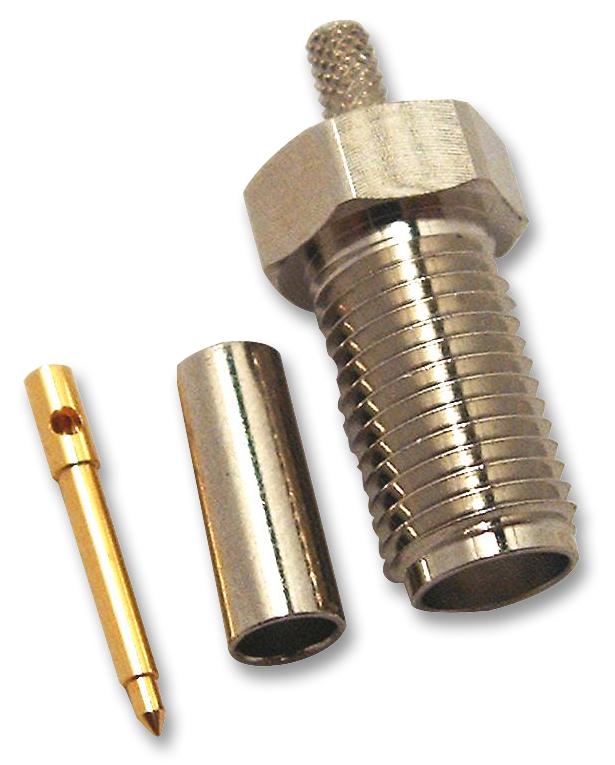

AMPHENOL RF RSMA6411A2NT50G550 RF SMA Connector
The RSMA6411A2NT50G550 is a high-quality SMA connector designed for RF applications, offering reliable performance with a gold-plated contact for optimal conductivity. This connector features a brass body with a nickel finish, ensuring durability and resistance to corrosion. Suitable for connecting coaxial cables such as RG-174/U, 188A/U, and 316/U, it supports a maximum panel thickness of 3.2 mm. Its compact design and sturdy construction make it ideal for external, high-frequency electrical connections in telecommunications and measurement systems.
AMPHENOL RF RSMA6411A2NT50G550 RF SMA Connector Specifications:
- Material: Brass with nickel plating
- Contact Finish: Gold-plated, minimum 100 µin. thick
- Body Finish: Nickel
- Connector Type: SMA
- Suitable Cables: RG-174/U, 188A/U, 316/U
- Maximum Panel Thickness: 3.2 mm
- Crimp Size: .052 inch
- Operating Frequency: Up to 12 GHz
- Operating Temperature Range: -55°C to +85°C
- Approvals: UL Recognized, RoHS compliant
Buy the Buy Amphenol SMA Connector Part Number RSMA6411A2NT50G550 Online
Secure high-performance RF connections with this SMA connector featuring a durable brass body, gold-plated contacts, and compatibility with RG-174/U cables. Designed for reliable performance across a wide temperature range, it supports applications in telecommunications, measurement, and wireless systems. Its compact design and robust construction facilitate easy installation and long-term use, making it an essential component for professional RF and coaxial connections. Purchase online now to ensure your projects benefit from top-tier connectivity and quality.
Order your Amphenol SeriesRSMA6411A2NT50G550 SMA connector today and ensure high-frequency reliability for your RF and coaxial cable projects.
Frequently Asked Questions
Where can I buy AMPHENOL RF RSMA6411A2NT50G550?
You can click on the BUY or RFQ button to purchase RSMA6411A2NT50G550 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part RSMA6411A2NT50G550?
You can download the RSMA6411A2NT50G550 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of RSMA6411A2NT50G550?
AMPHENOL RF
