AMPHENOL SINE/TUCHEL AMN05PM5 industrial connector

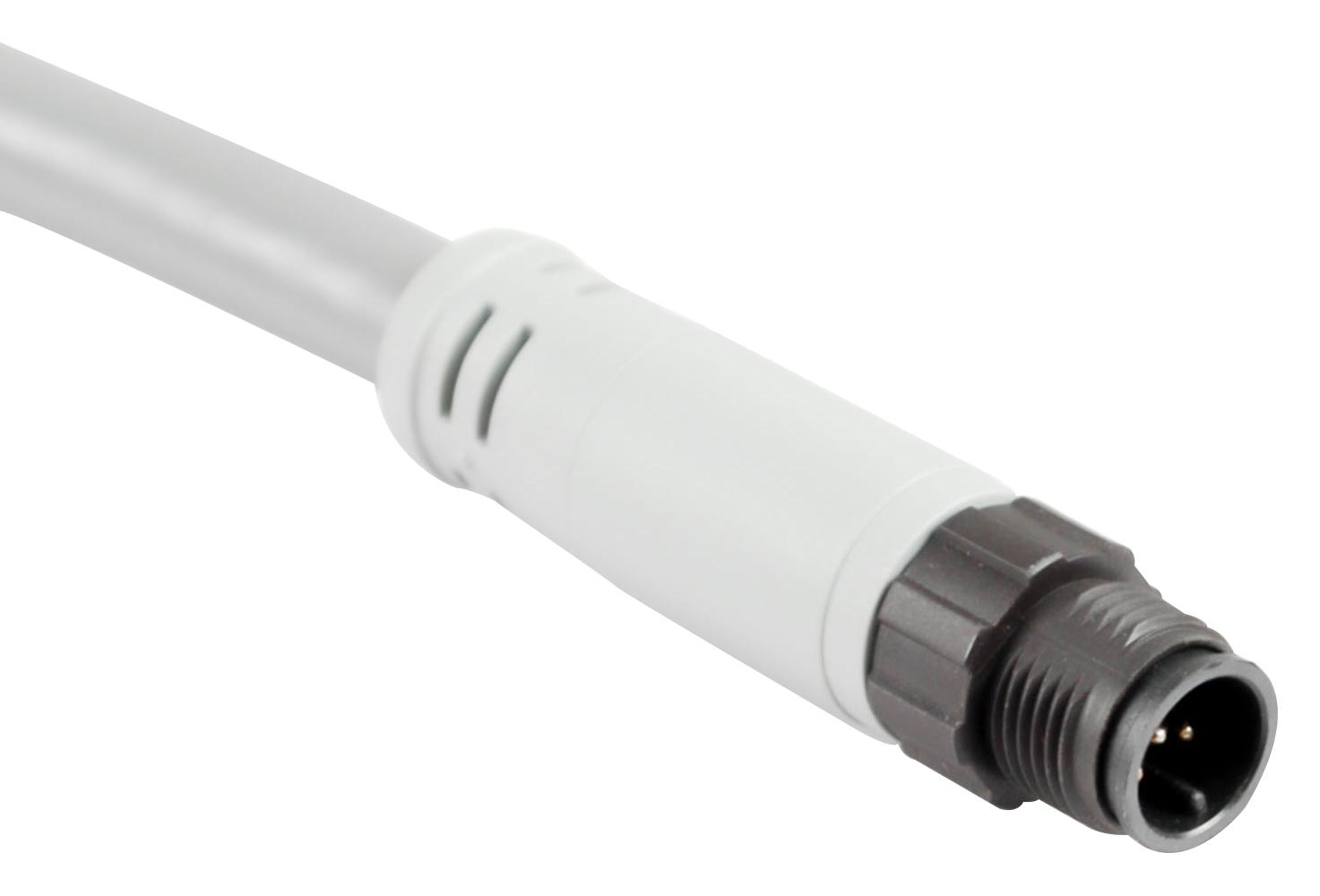

The Amphenol AM-N05P-M5 is a grey-colored, M12 single-ended NMEA 2000 plug cable assembly featuring 5 pin contacts and a 5-meter cable length. It includes 20 AWG wire, with a voltage rating of 300V and a current rating of 4A. The assembly operates within a temperature range of -40°C to 80°C and has a PVC cable jacket. The contacts are copper alloy with gold flash plating, ensuring reliable connections, and have a dielectric test voltage of 500V. Designed for durability, it withstands over 100 mating cycles. The assembly uses black hotmelt premould material, red EPDM seal, and a grey thermoplastic PVC overmould for protection. Suitable for industrial applications, this connector is ideal for marine and industrial networking systems.
AMPHENOL SINE/TUCHEL AMN05PM5 industrial connector Specifications:
- Material: Copper alloy contacts with gold flash plating
- Cable Length: 5 meters
- Wire Gauge: 20 AWG
- Voltage Rating: 300V
- Current Rating: 4A
- Temperature Range: -40°C to 80°C
- Cable Jacket Material: PVC
- Dielectric Test Voltage: 500V
- Protection: IP67 (mated condition)
- Mating Cycles: Over 100
- Premold Material: Black hotmelt
- Overmold Material: Thermoplastic PVC, Gray
- Seal: EPDM, Red
- Fixed Installation Bending Radius: 7 times the outer diameter
Buy the Buy Amphenol M12 Single-Ended NMEA 2000 Cable Assembly Part Number AMN05PM5 Online
Purchase the Amphenol M12 cable assembly online and enjoy fast delivery and competitive prices. This 5-meter, 5-pin connector features copper alloy contacts with gold flash plating, a PVC jacket rated for 300V and 4A, and operates from -40°C to 80°C. Its IP67 protection and over 100 mating cycles ensure durability for demanding industrial and marine applications. The black premould, red EPDM seal, and thermoplastic PVC overmould provide excellent resistance to environmental factors. Ideal for reliable industrial networking connectors.
Buy Amphenol AM-N05P-M5 now and experience unmatched durability and reliable marine and industrial networking connections.
Frequently Asked Questions
Where can I buy AMPHENOL SINE/TUCHEL AMN05PM5?
You can click on the BUY or RFQ button to purchase AMN05PM5 from an authorized AMPHENOL SINE/TUCHEL distributor.
How do I troubleshoot issues or seek technical support for part AMN05PM5?
You can download the AMN05PM5 datasheet or visit the AMPHENOL SINE/TUCHEL website for support.
Who is the manufacturer of AMN05PM5?
AMPHENOL SINE/TUCHEL
