AMPHENOL SV MICROWAVE 8018-6061 Datasheet & Stock

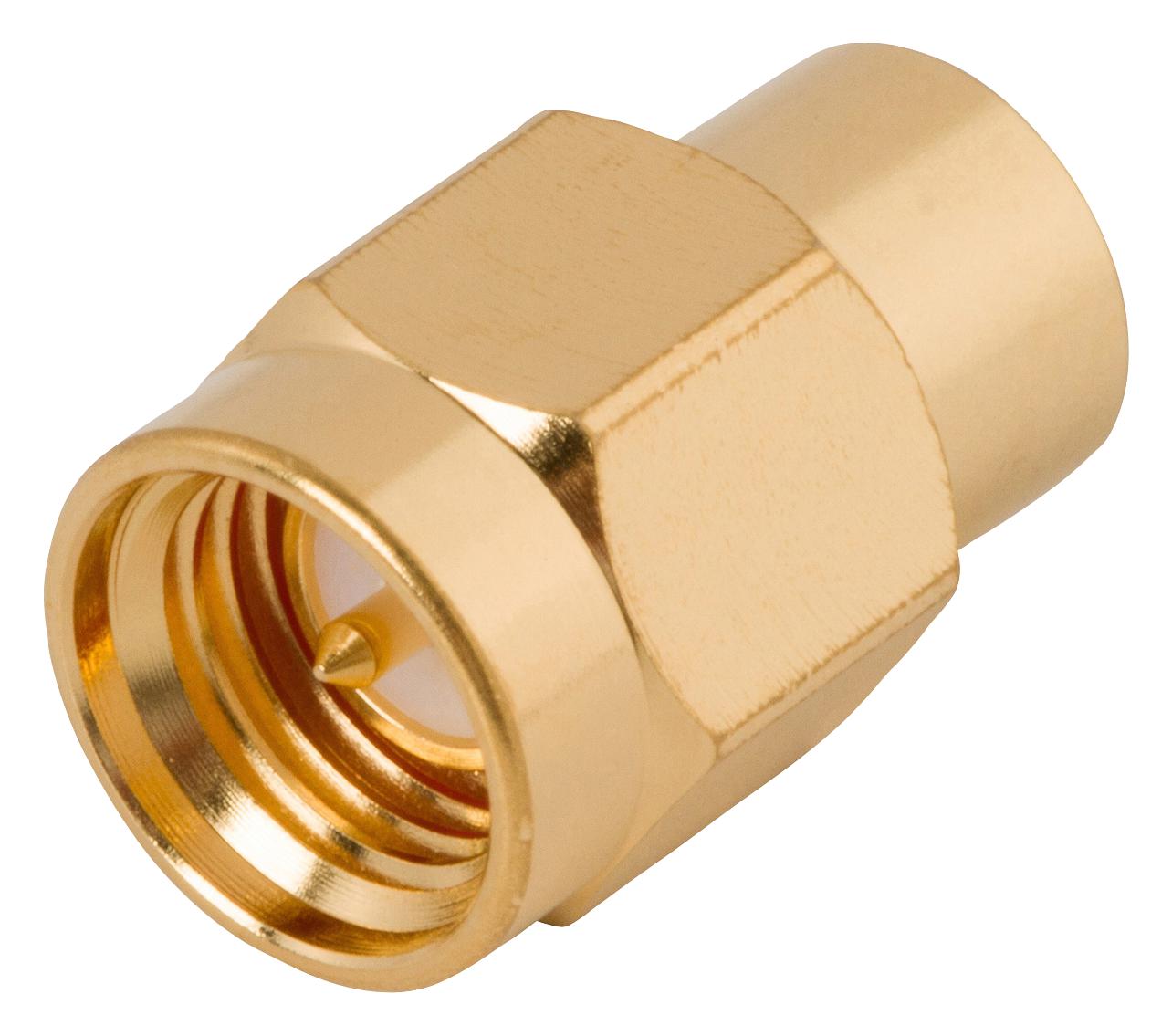

The 8018-6061 from Amphenol SV Microwave is a SMA male termination. This high performance connector is compact in size and mechanically has outstanding durability. Built-in accordance with MIL-PRF-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these spec mating diameters regardless of manufacturer. Broadband performance DC to 18GHz with low reflection stainless steel construction and 1/4-36 threaded coupling offers high performance in a compact design. Available for 0.047, 0.085 and 0.141 diameter semi-rigid cables and all the standard flexible cables including double shielded RG-316. The product has VSWR of 1.05 + .005 f and shielding effectiveness of ≥ -90 - f dB. This is corrosion, vibration, shock and thermal shock resistant. Typical applications include military, aerospace, cable assemblies, telecommunications, instrumentation, base stations and process controls.




Body and coupling nut are made of stainless steel with gold finish

Lock ring and contact are made of beryllium copper with gold finish

Impedance is 50 ohm, frequency is 18GHz, insertion loss is 0.03√ f

Dielectric withstanding voltage is 1000VRMS

500 mating cycles, 7 to 10in - lbs mating torque

PTFE insulator, silicone rubber gasket

Temperature rating from -65°C to +165°C

Alumina substrate with nichrome resistor
