AMPHENOL SV MICROWAVE SF1590-6000 Datasheet & Stock

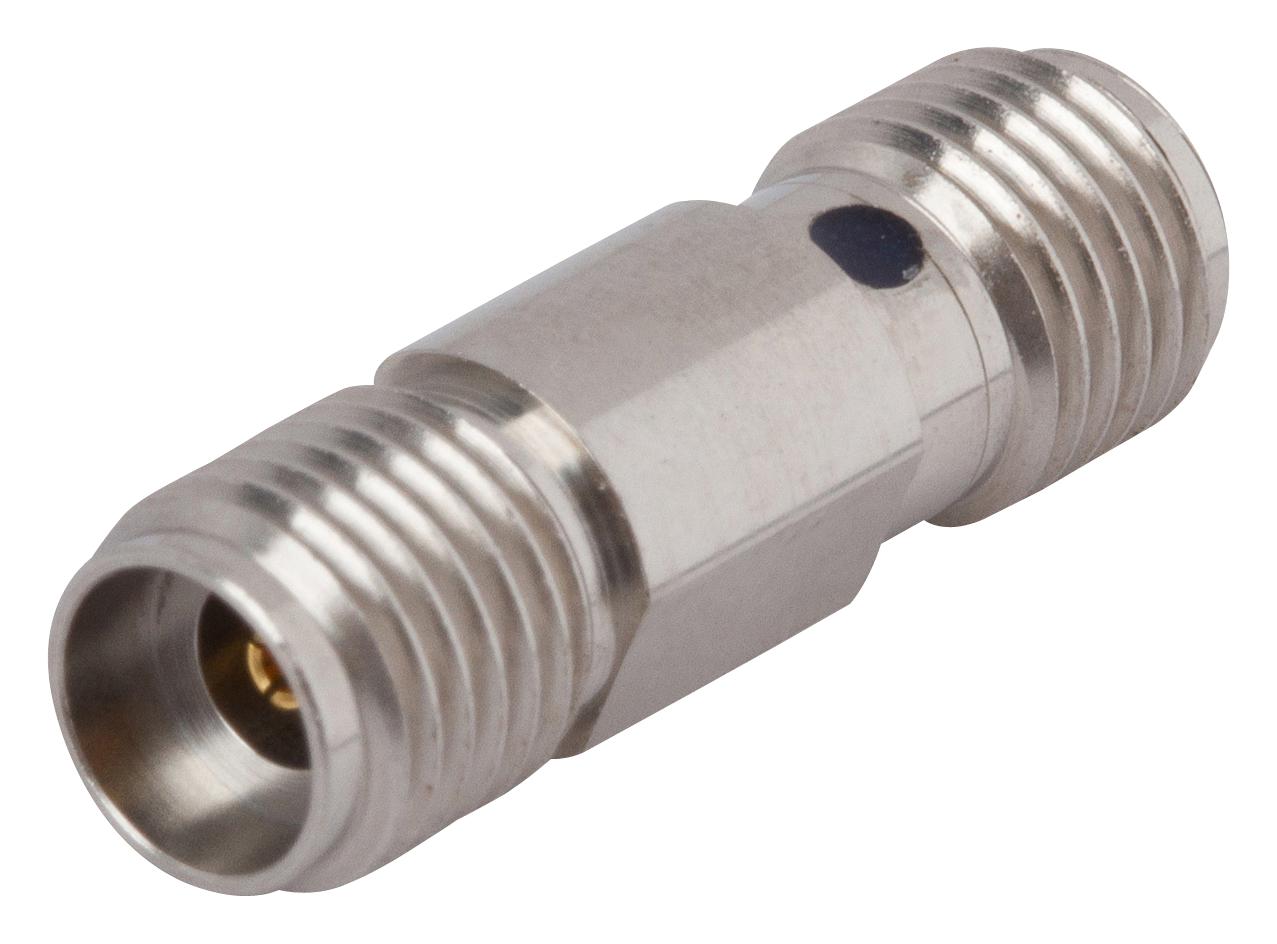

The SF1590-6000 from Amphenol SV Microwave is a 2.92mm female to female adapter. The 2.92mm connector was developed for use to 40GHz. The male pin is shorter than that of an SMA or 3.5mm to ensure that the outer contacts of the male and female connectors engage before the pin and female receptacle do. This ensures that the pin and socket will not see excessive wear and mating stress seen by misalignment in an SMA or 3.5mm connector. The 2.92mm connector also has a thicker wall than a standard SMA. The 2.92mm series mates with SMA and 3.5mm connectors. Typical applications include high speed digital, instrumentation, military, aerospace, satellite communication equipment (SATCOM), cable assemblies and test and measurement.




Low RF leakage superior reliability, low VSWR

Impedance is 50 ohm

Shielding effectiveness is ≥ 100dB

Stainless steel body and sleeve

Beryllium copper with gold finish contact

Ultem beads

500 mating cycles

Temperature range from -65°C to +165°C





Applications


Industrial
