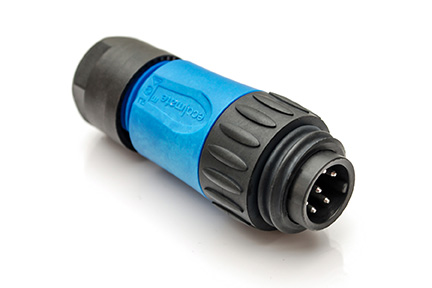

Amphenol Tuchel C01630H00610010 3+PE 6+PE Connector
The Amphenol Tuchel C01630H00610010 is a high-performance circular connector designed for demanding industrial environments. It offers a combination of robust construction, multiple contact options (3+PE and 6+PE), and versatile termination methods (screw, solder, and crimp) to suit diverse application needs. The connector is rated for high voltage and current, and its IP65/IP67 ingress protection ensures reliable operation in harsh conditions. It is suitable for applications in automation, power transmission, and other industrial sectors where reliable connectivity is essential. Note that reduced current carrying capacity must be considered if used as a plug and socket device.
Amphenol Tuchel C01630H00610010 3+PE 6+PE Connector Specifications:
- Number of contacts: 3 + PE, 6 + PE
- Termination technique: screw type, solder type, crimp type
- Wire gauge / AWG: 0.75 - 2.5 mm, 0.14 - 1.5 mm
- AWG: 18-14, 18, 26-16
- Flammability: UL 94 VO
- Locking system: round thread
- Rated voltage IEC 60664-1: 400 V, 250 V
- Pollution degree IEC 60664-1: 3
- Installation category IEC 60664-1: III
- Insulation group IEC 60664-1: II
- Rated impulse withstand voltage IEC 60664-1: 6000 V, 4000 V
- Current rating IEC 60512-5-2: 16 A / + 55°C, 12 A / + 55°C, 13 A / + 55°C
- Contact resistance IEC 60512-2-1: ≤ 5 m Ω
- Insulation resistance IEC 60512-3-1: ≥ 10 Ω
- Climatic category IEC 60068-1: 40 / 100 / 56, 40 / 125 / 56
- Operating temperature: -40°C ... +100°C, -40°C ... +125°C
- IP-degree IEC 60529: IP 65 / IP 67
- Insertion and withdrawal forces IEC 60512-13-2: ≤ 15 N, ≤ 30 N
- Mechanical operation IEC 60512-9-1: ≥ 500 mating cycles
- Housing material: PA 6.6 / PA 6
- Dielectric material: PA 6.6 / PA 6
- Gasket material: Neopren
- Material lace for protective cover: TPE
- Contact plating: silver plating / gold plating
