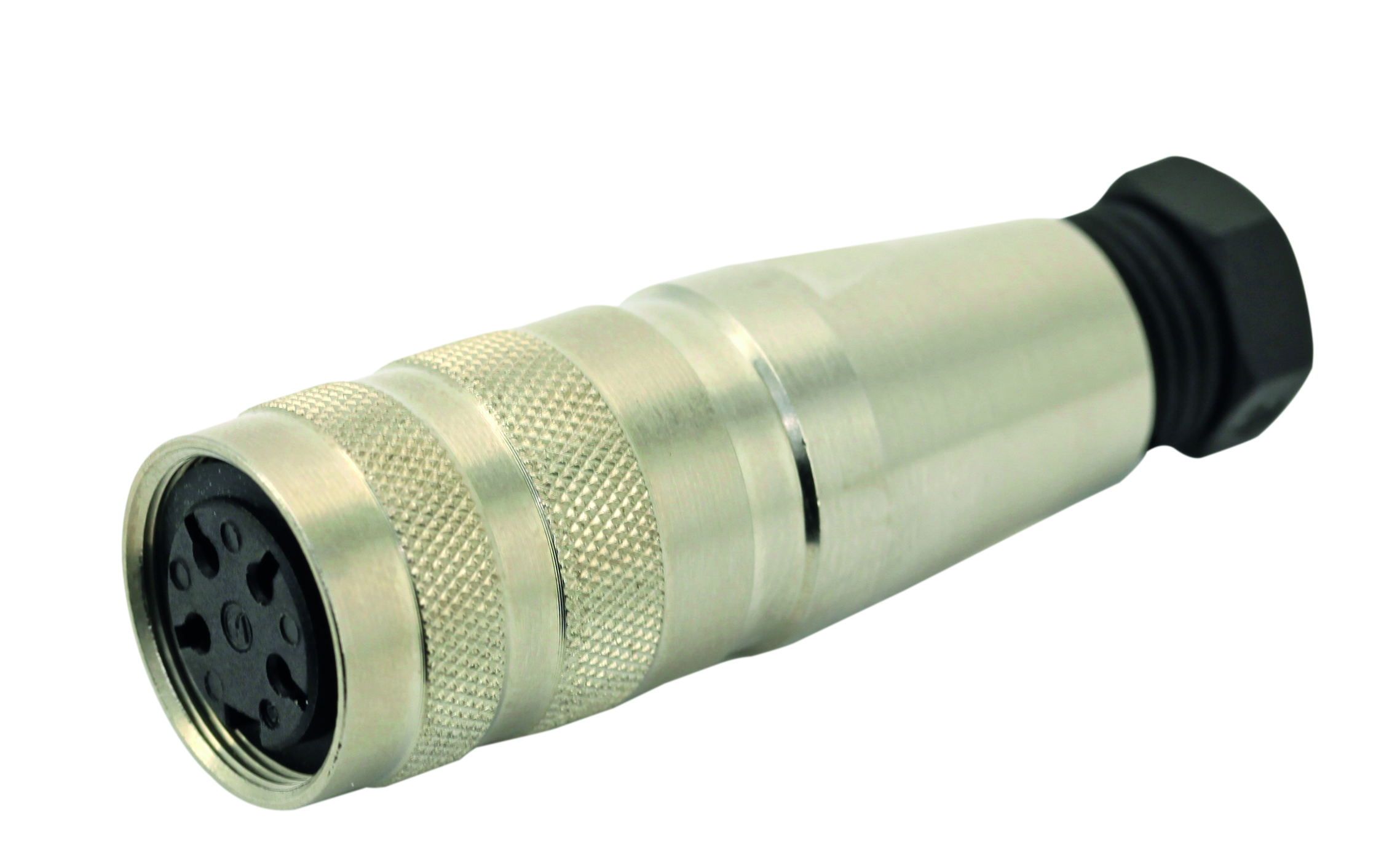

Amphenol Tuchel C09131D0031002 circular DIN connector
Amphenol's C091 (M16 Size) series of circular DIN connectors and cable assemblies are highly versatile, offering environmental protection up to IP69K with threaded or bayonet locking options. These compact connectors deliver excellent EMI shielding and are suitable for diverse industrial applications, including high-resolution inspection equipment, automation, wireless infrastructure, and agricultural machinery. The modular design supports various configurations with multiple positions and connection types, ensuring reliable power and signal connections across harsh environments with temperature ratings from -40°C to +100°C, and various contact and material options.
Amphenol Tuchel C09131D0031002 circular DIN connector Specifications:
- Available in 2 thru 8, 12, and 14 Positions
- Temperature Range: -40°C to +100°C
- Voltage Rating: Up to 300V per IEC 60664-1
- Mating Cycles: > 10,000
- Material: Brass or Zinc Die-Cast, Nickel Plated, or Thermoplast
- Contact Plating: Silver or Gold
- Shell Material: Metal or Thermoplastic
- Ingress Protection: IP40 mated, up to IP69K
- Housing Options: Metal Screw, Plastic, Bayonet
- Current Rating: 10A (per contact)
- Cable Compatibility: 18-22 AWG
- Insulation Resistance: > 10Q
- Contact Resistance: < 5mΩ
- Salt Spray Resistance: 720 hours
- Compliance: UL 94 V-0
Buy the Buy Amphenol Circular DIN Connectors – Reliable Industrial Automation Parts Number C09131D0031002
Purchase the Amphenol C091 series circular DIN connectors online now to benefit from high environmental resistance, versatile configurations, and reliable EMI shielding. These connectors are engineered for demanding industrial and wireless infrastructure applications, offering IP69K protection, excellent durability, and support for multiple contact configurations. Featuring durable materials like nickel-plated brass or zinc die-cast, they provide prolonged service life in extreme conditions. Quickly rising to the top choice for OEMs and installers seeking dependable connectivity solutions with easy installation options, all available through our seamless online ordering platform.
Order your Amphenol Series C091 industrial connectors today and ensure secure, high-performance connections in harsh environments.
Frequently Asked Questions
Where can I buy Amphenol Tuchel C09131D0031002?
You can click on the BUY or RFQ button to purchase C09131D0031002 from an authorized Amphenol Tuchel distributor.
How do I troubleshoot issues or seek technical support for part C09131D0031002?
You can download the C09131D0031002 datasheet or visit the Amphenol Tuchel website for support.
Who is the manufacturer of C09131D0031002?
Amphenol Tuchel
