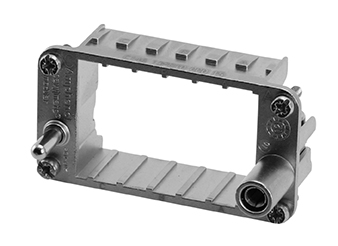

Amphenol Tuchel C14610P01000015 Module Connector Frame
The Amphenol Tuchel C14610P01000015 is a module connector frame designed for demanding industrial environments. This connector frame supports multiple modules and offers a secure connection for various applications. It is constructed with a Zn die cast module frame and CuZn (brass) contacts with a Nickel plating. Important notes include the use of either clamp 1 or clamp 2 for protective earth contacts, and the need to fill empty module positions with blind modules. The recommended tightening torque for the screw is a minimum of 1.2 Nm.
Amphenol Tuchel C14610P01000015 Module Connector Frame Specifications:
- number_of_modules: 3
- number_of_contacts: 2x PE
- termination_technique: screw
- wire_gauge_clamp_1: 1 mm² - 6 mm²
- wire_gauge_clamp_2: 10 mm² / AWG 8
- climatic_category_iec_60068-1: 40 / 125 / 21
- upper_temperature_iec_60512-11-9: +125 °C
- lower_temperature_iec_60512-11-10: -40 °C
- mechanical_operation_iec_60512-9-1: >500 mating cycles
- module_frame_material: Zn die cast
- contacts_material: CuZn (brass)
- contact_plating: Ni (Nickel)
- recommended_tightening_torque: min. 1,2 Nm
- weight: 50 g
