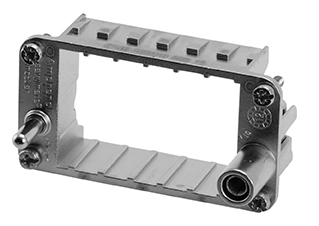

Amphenol Tuchel C14610S01000015 3 Module Connector Frame
The Amphenol Tuchel C14610S01000015 is a robust module connector frame designed for demanding industrial environments. This connector frame supports three modules and utilizes a screw termination technique for secure and reliable connections. It is designed to be used in combination with C146 10P010 000 15. The frame is constructed with a Zn die cast module frame and CuZn (brass) contacts with a Nickel plating. It is RoHS compliant and features a climatic category rating of 40 / 125 / 21, ensuring performance across a wide range of temperatures. Proper torque of 1.2 Nm is recommended for screw connections. Empty module positions are not allowed and must be filled with blind modules.
Amphenol Tuchel C14610S01000015 3 Module Connector Frame Specifications:
- number_of_modules: 3
- number_of_contacts: 2x PE
- termination_technique: screw
- wire_gauge_clamp_1: 1 mm² - 6 mm²
- wire_gauge_clamp_2: 10 mm² / AWG 8
- climatic_category: 40 / 125 / 21
- upper_temperature: +125 °C
- lower_temperature: -40 °C
- mechanical_operation: >500 mating cycles
- module_frame_material: Zn die cast
- contact_material: CuZn (brass)
- contact_plating: Ni (Nickel)
- recommended_torque: min. 1,2 Nm
- weight: 50 g
