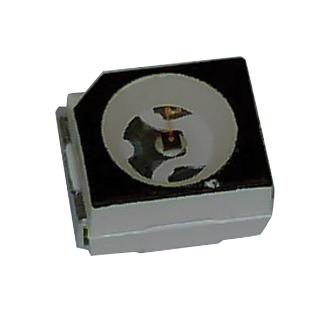

AMS OSRAM GROUP LAT68BT2V124Z amber SMT LED
The LAT68B-T2V1-24-Z is a TOPLED® SMT LED featuring a round-shaped lens and an integrated reflector. It is designed for applications such as backlighting, traffic signals, indicator lights, and symbols. The LED uses InGaAlP technology, offers improved corrosion resistance, and can operate at a junction temperature of up to 125°C. It has a reverse voltage of 12V and can withstand up to 2kV ESD. Note that due to high market demand, lead times may be extended, and delivery dates are subject to change. The product is not eligible for discounts.
AMS OSRAM GROUP LAT68BT2V124Z amber SMT LED Specifications:
- Package: white PLCC-2, colorless clear resin
- Technology: InGaAlP
- Viewing angle at 50%: 120° (Lambertian emitter)
- Color: amber (617 nm)
- Corrosion robustness: Improved corrosion resistance
- Junction temperature: up to 125°C
- Reverse voltage: 12V
- ESD withstand voltage: up to 2kV
- Maximum forward current: 50 mA
- Storage temperature range: -40°C to 100°C
- Operating temperature range: -40°C to 100°C
- Peak wavelength: 624 nm
- Dominant wavelength: 617 nm
- Spectral bandwidth at 50% max: 18 nm
- Brightness groups: T2 (355-450 nm), U1 (450-560 nm), U2 (560-710 nm), I (710-900 nm)
- Reflow soldering profile: According to JEDEC Level 2 standards
- Tape and reel packaging: 8 mm tape with 2000 pcs on 180 mm reel, 8000 pcs on 330 mm reel
Buy the OSRAM LAT68B-T2V1-24-Z – Reliable Amber LED for Industrial Applications
Purchase the OSRAM LAT68B-T2V1-24-Z amber SMT LED online today. Ideal for automotive lighting, traffic signals, and backlighting, this high-quality LED features InGaAlP technology, a 120° viewing angle, and improved corrosion robustness, ensuring durability and excellent performance in your industrial, automotive, and signaling projects. With reliable ESD resistance and a maximum junction temperature of 125°C, this LED is suitable for demanding applications. Secure your stock now and enhance your project’s visual clarity with this trusted luminous component.
Order your OSRAM Series LAT68B-T2V1-24-Z today and give your projects the dependable quality they deserve.
