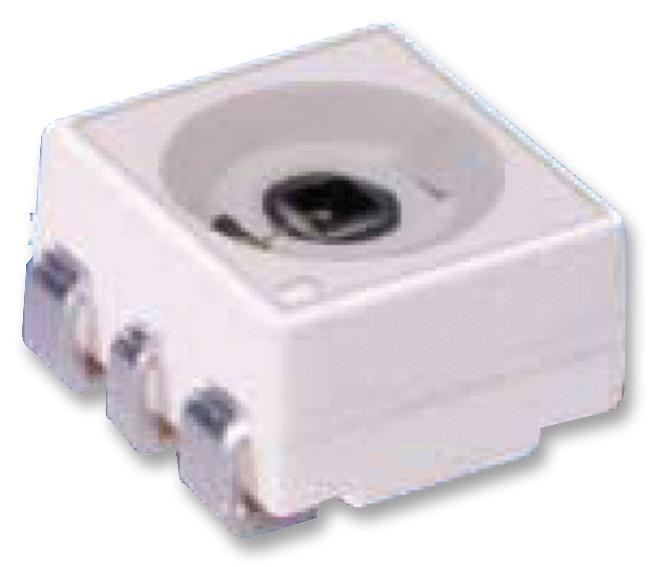

AMS OSRAM GROUP LBG6SPBACB3547 High-brightness blue LED
The Advanced Power TOPLED series is a high-brightness, compact LED utilizing ThinGaN technology with wide brightness and high luminous efficiency. With an optical efficacy of 10 lm/W at 470 nm blue, it is ideal for applications like interior illumination, display backlighting, and custom tuning. The package features a white SMT configuration with a clear silicone resin, and it is certified for automotive-grade stress testing. Recommended for reliable and efficient lighting solutions in industrial and electronic applications, ensuring consistent performance and long-term durability.
AMS OSRAM GROUP LBG6SPBACB3547 High-brightness blue LED Specifications:
- Package: white SMT, clear silicone resin
- Chip technology: ThinGaN
- Color: 470 nm (blue)
- Optical efficacy: 10 Im/W
- Radiation: Typ. 120° (Lambertian emitter)
- Corrosion Robustness Class: 3B
- Qualification: Based on AEC-Q101 guidelines
- Luminous Intensity: 1.8 ... 4.5 cd at 140 mA
- Dimensions: package marking 'Anode', approximate weight 40 mg
- Operating Temperature: -40°C to 110°C
- Junction Temperature: max. 125°C
- Forward Current: min. 30 mA, max. 250 mA
- Surge Current: max. 750 mA
- ESD withstand voltage: 2 kV
Buy the OSRAM LB G6SP – Reliable LED for Industrial Applications
Purchase OSRAM LB G6SP LED online today to ensure high-efficiency illumination for your industrial, automotive, or display lighting needs. This advanced LED features ThinGaN technology, offering a luminous efficacy of 10 Im/W at 470 nm with a wide radiation angle suitable for backlighting and ambient illumination. Its compact SMT package and automotive-grade qualification guarantee reliability and durability in demanding environments. With fast delivery and proven performance, this LED is ideal for engineers and professionals seeking quality and long-term stability in lighting applications.
Get OSRAM LB G6SP today—built for precision and long-lasting durability in your lighting projects.
Frequently Asked Questions
Where can I buy AMS OSRAM GROUP LBG6SPBACB3547?
You can click on the BUY or RFQ button to purchase LBG6SPBACB3547 from an authorized AMS OSRAM GROUP distributor.
How do I troubleshoot issues or seek technical support for part LBG6SPBACB3547?
You can download the LBG6SPBACB3547 datasheet or visit the AMS OSRAM GROUP website for support.
Who is the manufacturer of LBG6SPBACB3547?
AMS OSRAM GROUP
