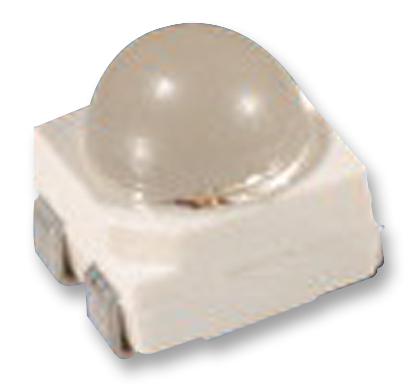

AMS OSRAM GROUP LSE65FCADB11L Super-Red LED
The LSE65F-BBDA-1-1 is a super-red enhanced thin-film LED featuring a top LED lens made with InGaAlP technology. It is suitable for surface-mount assembly and complies with MSL Level 2 according to JEDEC standards. This LED offers a reverse voltage of 12V, improved corrosion resistance, and an ESD withstand voltage of 2kV (ANSI/ESDA/JEDEC JS-001, HBM, class 2). It is commonly used in LED lighting and automotive applications. Market demand has extended lead times, and delivery dates may fluctuate. The product is not eligible for discounts.
AMS OSRAM GROUP LSE65FCADB11L Super-Red LED Specifications:
- Package: white PLCC-4 package, colorless clear resin
- Chip technology: Thinfilm
- Radiation angle: Typ. 60°
- Color: Super red at 633 nm
- Corrosion robustness: Class 3B
- ESD withstand voltage: 2 kV (ANSI/ESDA/JEDEC JS-001, HBM, Class 2)
- Operating temperature: -40°C to 100°C
- Junction temperature: Max 125°C
- Forward current: Max 70 mA at 25°C
- Reverse voltage: Max 12 V
- Peak wavelength: >645 nm
- Dominant wavelength: 627 nm min, 639 nm max
- Viewing angle: Typ. 60°
- Forward voltage: Min 1.90 V, Typ. 2.15 V, Max 2.50 V at 50 mA
- Electrical thermal resistance junction/solder point: Typ. 75 K/W
Buy the Buy OSRAM LSE65F Part Number LSE65FCADB11L Online
Order the OSRAM LSE65F in super-red lens technology now to enhance your automotive lighting and traffic control projects. This high-efficiency, surface-mount LED with a 60° radiation angle and 2kV ESD tolerance ensures reliable performance in demanding environments. Perfect for traffic lights, indicator signals, and scene illumination, it offers a robust package, excellent corrosion resistance, and easy assembly. Purchase online today and benefit from fast delivery, quality assurance, and competitive prices for your professional application needs.
Buy OSRAM LSE65F now and experience unmatched reliability and performance for automotive and LED lighting solutions.
Frequently Asked Questions
Where can I buy AMS OSRAM GROUP LSE65FCADB11L?
You can click on the BUY or RFQ button to purchase LSE65FCADB11L from an authorized AMS OSRAM GROUP distributor.
How do I troubleshoot issues or seek technical support for part LSE65FCADB11L?
You can download the LSE65FCADB11L datasheet or visit the AMS OSRAM GROUP website for support.
Who is the manufacturer of LSE65FCADB11L?
AMS OSRAM GROUP
