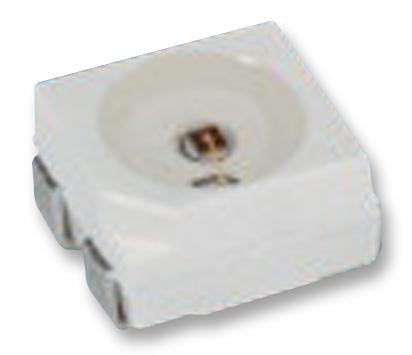

AMS OSRAM GROUP LSE6SFV2BA11 Super-Red LED
The LSE6SF-V2BA-1-1 is a super-red Thinfilm LED with a TOPLED lens, offering higher optical efficiency for increased brightness. Made with InGaAlP Thinfilm technology, it is suitable for surface-mount assembly and complies with MSL Level 2 standards (JEDEC J-STD-020D.01). It features a 12V reverse voltage and a 2kV ESD withstand voltage according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2). Ideal applications include LED lighting and automotive lighting. Please note that demand may extend lead times, and the device is ESD sensitive, requiring proper handling precautions.
AMS OSRAM GROUP LSE6SFV2BA11 Super-Red LED Specifications:
- Wavelength: 633 nm (super-red)
- Viewing Angle: 120° (Lambertian)
- Forward Voltage: 1.90 V (min) to 2.50 V (max) at 50 mA
- Dominant Wavelength: 633 nm
- Spectral Bandwidth: Not specified
- Maximum Operating Temperature: +100°C
- Storage Temperature Range: -40°C to +100°C
- Junction Temperature: +125°C
- Forward Current: Up to 70 mA
- Surge Current: 1<10 ps, D=0.1, T=25°C
- Reverse Voltage: 5 V
- Power Consumption: Not specified
- Thermal Resistance: Junction/ambient 99°C/W
- ESD withstand voltage: Up to 2 kV (JESD22-A114-B)
- Compliance: RoHS compliant, Lead (Pb) free
- Assembly Method: Suitable for SMT, IR reflow and TTW soldering
- Package: White P-LCC-4, clear resin
- Typical optical efficiency: 38 Im/W (super-red)
Buy the OSRAM Series E6SF Super-Red LED: LSE6SF-V2BA-1-1
Order the OSRAM super-red LED LSE6SF-V2BA-1-1 online today to enhance your lighting solutions. Made with advanced InGaAlP technology, this surface-mount LED offers high optical efficiency and reliable performance for automotive, display, and general lighting applications. Its robust design ensures long-term durability and compliance with RoHS standards. Suitable for SMT assembly and equipped with ESD protection, it guarantees safety during handling and installation. Optimize your projects with this precision-engineered component—order now and enjoy fast, online purchase convenience.
Get OSRAM LSE6SF-V2BA-1-1 super-red LED today—designed for high brightness and durability, perfect for automotive and illumination projects.
Frequently Asked Questions
Where can I buy AMS OSRAM GROUP LSE6SFV2BA11?
You can click on the BUY or RFQ button to purchase LSE6SFV2BA11 from an authorized AMS OSRAM GROUP distributor.
How do I troubleshoot issues or seek technical support for part LSE6SFV2BA11?
You can download the LSE6SFV2BA11 datasheet or visit the AMS OSRAM GROUP website for support.
Who is the manufacturer of LSE6SFV2BA11?
AMS OSRAM GROUP
