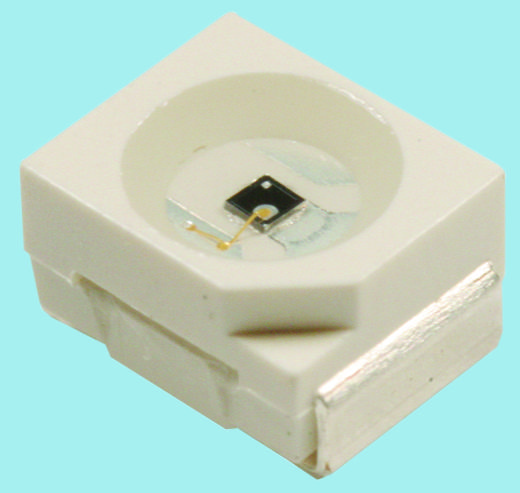

AMS OSRAM GROUP LST67FT2V21 High-brightness SMT LED
The LS T67F-T2V2-1 TOPLED SMT LED features a round lens and integrated reflector, offering high brightness and reliability with InGaAlP technology. Perfect for traffic lights, backlighting, signal and symbol lighting, it provides an 120° Lambertian emission angle, improved corrosion resistance, and operates efficiently at a junction temperature of 125°C. Suitable for automotive and signaling applications, it withstands up to 2kV ESD, with a reverse voltage of 12V, ensuring durability in demanding environments. This product enhances visibility, safety, and signal clarity across various industries.
AMS OSRAM GROUP LST67FT2V21 High-brightness SMT LED Specifications:
- Package: white PLCC-2, clear resin
- Technology: InGaAlP Thinfilm
- Viewing angle at 50% I: 120° (Lambertian emitter)
- Color: super red (633 nm)
- Corrosion robustness: improved
- Maximum junction temperature: 125°C
- Reverse voltage: 12V
- ESD withstand voltage: up to 2 kV
- Operating temperature range: -40°C to 100°C
- Forward current: 50 mA
- Surge current: 100 mA (≤ 10 µs)
- Wavelength at peak emission: 645 nm
- Dominant wavelength: 627–639 nm
- Spectral bandwidth at 50% I: 16 nm
- Peak emission wavelength: 645 nm
- Thermal resistance junction/ambient: max 500 K/W
- Reflow soldering profile: standard JEDEC Level 2
- Tape and reel packaging: 2000 pcs on 180 mm reel, 8000 pcs on 330 mm reel
Buy the Buy TOPLED LS T67F Part Number LST67FT2V21 Online
Order the high-brightness TOPLED SMT LED with integrated reflector now to enhance your traffic lights, backlighting, and signaling systems. Featuring InGaAlP technology, a 120° Lambertian emission angle, and improved corrosion resistance, this LED guarantees durability and excellent visibility. Capable of operating at junction temperatures up to 125°C, with a reverse voltage of 12V and withstands up to 2kV ESD events, making it ideal for automotive, industrial, and signaling applications. Purchase online today for prompt delivery and reliable performance in demanding environments.
Buy TOPLED LS T67F LST67FT2V21 now and experience unmatched reliability and high-brightness illumination for traffic and signaling applications.
Frequently Asked Questions
Where can I buy AMS OSRAM GROUP LST67FT2V21?
You can click on the BUY or RFQ button to purchase LST67FT2V21 from an authorized AMS OSRAM GROUP distributor.
How do I troubleshoot issues or seek technical support for part LST67FT2V21?
You can download the LST67FT2V21 datasheet or visit the AMS OSRAM GROUP website for support.
Who is the manufacturer of LST67FT2V21?
AMS OSRAM GROUP
