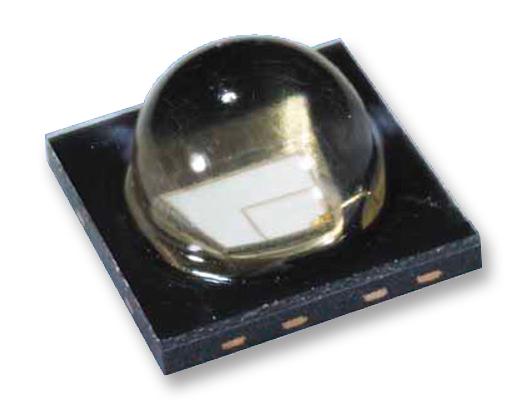

AMS-OSRAM-GROUP LYH9GPHZKY36 High Brightness LED
The OSLON Black series high brightness LED offers excellent thermal stability, high performance, and reliability housed in a compact black package. It features a metal lead frame and a proven lens design, making it suitable for applications with significant temperature fluctuations and the need for high light output from a small area. Ideal for architectural lighting (both indoor and outdoor), automotive interior and exterior lighting, light guide coupling, decorative lighting, as well as signal and symbol illumination. The LED utilizes InGaAlP thin-film technology and exhibits improved corrosion robustness.
AMS-OSRAM-GROUP LYH9GPHZKY36 High Brightness LED Specifications:
- Package: SMD epoxy with silicone lens
- Lens: 90° radiation
- Color: Yellow, 590 nm
- Technology: Thinfilm InGaAlP
- Corrosion Robustness Class: 3B
- ESD Protection: 8 kV according to ANSI/ESDA/JEDEC JS-001
- Junction Temperature: max. 150°C
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -40°C to +125°C
- Forward Current: min. 100 mA, max. 1000 mA at 25°C
- Peak Wavelength: approximately 597 nm
- Viewing Angle: ~90°
- Dimensions: Compact package suitable for mounting, approximate weight 32 mg
- Shelf life: Highly reliable with proven performance in demanding environments
Buy the Buy OSRAM H9GP Part Number LYH9GPHZKY36 Online
Order the OSRAM H9GP High Brightness LED online today and benefit from superior performance in automotive, architectural, and signal lighting. This compact LED features excellent thermal stability, a durable black package, and a proven lens design suitable for large temperature variations. Built with InGaAlP thin-film technology, it offers high luminous intensity, a wide viewing angle, and robust corrosion resistance. Ideal for customers seeking reliable and efficient lighting solutions across various demanding industrial and automotive applications.
Buy OSRAM H9GP now and experience unmatched reliability and performance in high brightness LED applications.
Frequently Asked Questions
Where can I buy AMS-OSRAM-GROUP LYH9GPHZKY36?
You can click on the BUY or RFQ button to purchase LYH9GPHZKY36 from an authorized AMS-OSRAM-GROUP distributor.
How do I troubleshoot issues or seek technical support for part LYH9GPHZKY36?
You can download the LYH9GPHZKY36 datasheet or visit the AMS-OSRAM-GROUP website for support.
Who is the manufacturer of LYH9GPHZKY36?
AMS-OSRAM-GROUP
