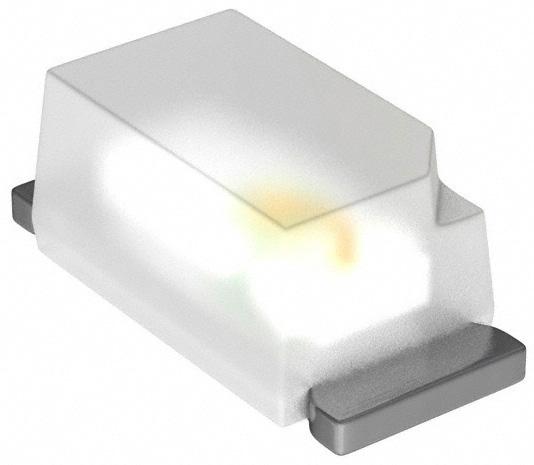

AMS OSRAM GROUP LYL296Q2R226Z SmartLED Display Light
The LYL296-Q2R2-26-Z is a high-quality SmartLED SMD LED designed for versatile applications including LCD backlighting, outdoor displays, toys, and signal lighting. It features an InGaAlP technology with a yellow color and a rectangular lens, providing an optical efficiency of 11 lumens per watt. This LED withstands up to 2 kV ESD protection, has a maximum junction temperature of 110°C, and a reverse voltage of 12V. Compact and reliable, it is suitable for demanding industrial and display applications with extended delivery times due to high demand.
AMS OSRAM GROUP LYL296Q2R226Z SmartLED Display Light Specifications:
- Package: SMT 0603, colorless diffused resin
- Technology: InGaAlP
- Color: Yellow
- Viewing angle at 50% ly: 160°
- Optical efficiency: 11 Im/W
- ESD withstand voltage: 2 kV
- Maximum junction temperature: 110°C
- Reverse voltage rating: 12V
- Operating temperature: -40°C to 100°C
- Storage temperature: -40°C to 100°C
- Forward current: 30 mA
- Peak forward surge current: 250 mA
- Reflow soldering profile: JEDEC Level 2
- Dimensions: package 0603 (1.6 x 0.8 mm), weight approx. 2 mg
- Application: LCD backlighting, signal indicators, outdoor displays, toys
Buy the OSRAM LY L296 – Reliable LED for Industrial Applications
Get your OSRAM LY L296 product online today to ensure fast delivery of this reliable LED designed for LCD backlighting, outdoor displays, toys, and signal lighting. With a compact SMT package, 11 Im/W optical efficiency, 2 kV ESD protection, and robust max junction temperature of 110°C, it guarantees high performance in demanding applications. Perfect for industrial projects, signage, and illumination systems, this LED combines quality and efficiency, providing exceptional brightness, durability, and dependable operation in a compact form factor. Order now and upgrade your lighting solutions swiftly.
Order your OSRAM SeriesLY L296 LED today and enhance your projects with dependable, high-performance illumination for industrial and display use.
Frequently Asked Questions
Where can I buy AMS OSRAM GROUP LYL296Q2R226Z?
You can click on the BUY or RFQ button to purchase LYL296Q2R226Z from an authorized AMS OSRAM GROUP distributor.
How do I troubleshoot issues or seek technical support for part LYL296Q2R226Z?
You can download the LYL296Q2R226Z datasheet or visit the AMS OSRAM GROUP website for support.
Who is the manufacturer of LYL296Q2R226Z?
AMS OSRAM GROUP
