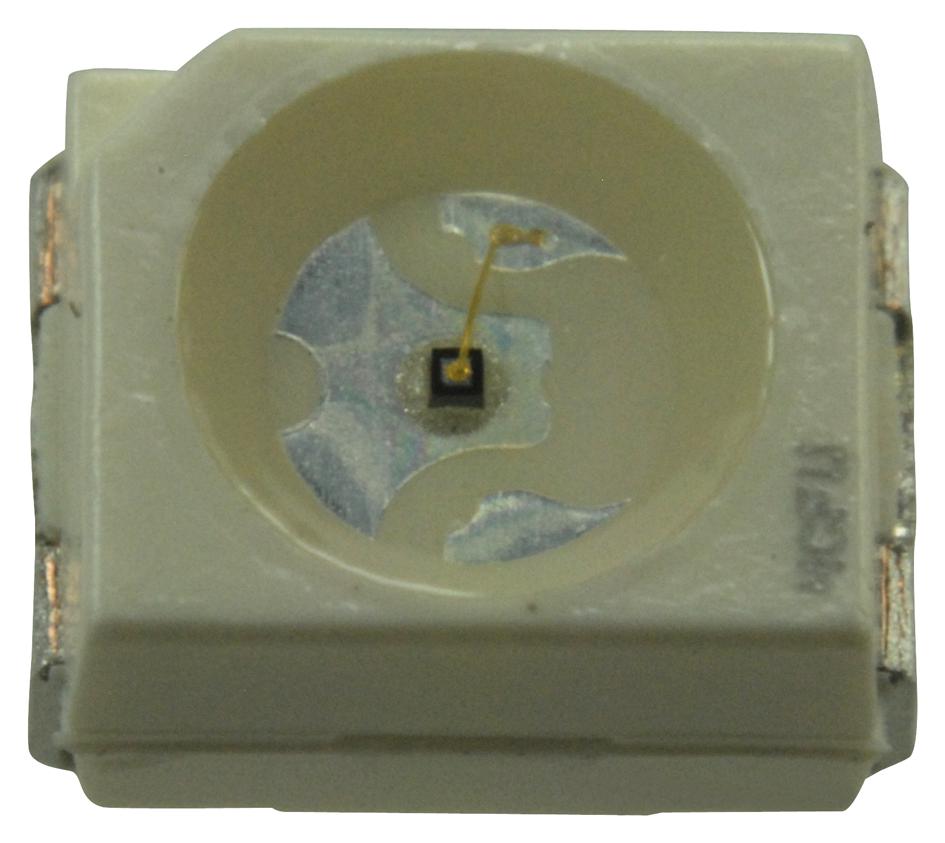

AMS OSRAM GROUP LYT676R1T126 Surface-Mount LED
The LYT676-R1S2-26-Z is a surface-mount LED featuring an integrated reflector and wide viewing angle. It uses InGaAlP chip technology, suitable for signage, dashboard backlighting, outdoor displays, and light guide coupling. Designed for durability, it withstands a surge current of 200mA and operates at a reverse voltage of 12V. Its corrosion resistance class 3B ensures reliability in industrial, automotive, and commercial lighting applications. The LED’s efficient design provides high brightness and consistent performance in various high-demand environments, making it a versatile choice for lighting solutions.
AMS OSRAM GROUP LYT676R1T126 Surface-Mount LED Specifications:
- Package: white PLCC-2, colorless resin
- Chip technology: InGaAlP
- Radiation: Typ. 120° Lambertian emitter
- Color: yellow, wavelength 587 nm
- Corrosion Robustness Class: 3B
- Operating Voltage: 12V reverse voltage
- Maximum surge current: 200mA
- Junction Temperature: max. 125°C
- Storage Temperature: -40°C to +100°C
- Forward current: max. 30 mA
- ESD withstand voltage: 2kV
- Recommended solder pad design for improved heat dissipation
- Reflow profile compliant with JEDEC J-STD-020D.01, MSL Level 2
- Tape and reel packaging for automated assembly
- Reel size options: 180mm and 330mm, with 2000/8000 pieces per reel
- Operating temperature range: -40°C to +100°C
- Peak wavelength: typ. 591 nm
- Dominant wavelength: min. 580 nm
- Spectral bandwidth: typ. 15 nm
- Viewing angle: typ. 120°
Buy the Buy OSRAM LYT676 Surface-Mount LED Part Number LYT676-R1S2-26-Z Online
Purchase the OSRAM LYT676 surface-mount LED online today for versatile lighting solutions. Featuring wide viewing angles, corrosion resistance class 3B, and robust InGaAlP technology, this LED is ideal for signage, automotive, and industrial applications. Its efficient design ensures high brightness and durability in demanding environments. With recommended solder pads and compliance to industry-standard reflow profiles, ordering in tape and reel makes production seamless. Enhance your lighting projects with this reliable, high-performance LED—order now and ensure top-tier illumination performance.
Get OSRAM LYT676-R1S2-26-Z today—built for high brightness, wide viewing angle, and reliable industrial illumination.
Frequently Asked Questions
Where can I buy AMS OSRAM GROUP LYT676R1T126?
You can click on the BUY or RFQ button to purchase LYT676R1T126 from an authorized AMS OSRAM GROUP distributor.
How do I troubleshoot issues or seek technical support for part LYT676R1T126?
You can download the LYT676R1T126 datasheet or visit the AMS OSRAM GROUP website for support.
Who is the manufacturer of LYT676R1T126?
AMS OSRAM GROUP
