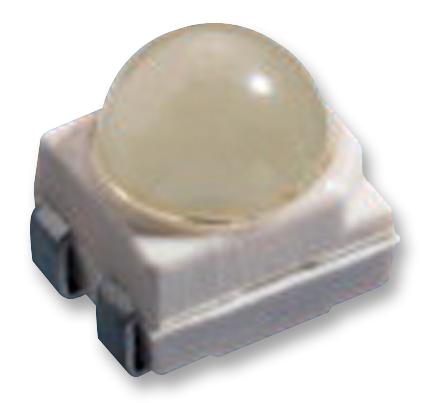

AMS OSRAM GROUP SFH4258 Infrared Emitter
The SFH4258 is a high-power infrared LED emitting at 850nm with a short switching time, suitable for infrared illumination in CMOS cameras, IR data transmission, and optical sensors. It allows high forward currents even at elevated temperatures. The device features a reverse voltage rating of 5V, surge current capacity of 5A, and a total power dissipation of 180mW. Caution is advised as the device emits concentrated infrared light that can be hazardous to the human eye depending on operating conditions.
AMS OSRAM GROUP SFH4258 Infrared Emitter Specifications:
- Wavelength at peak emission: 850 nm
- Spectral bandwidth at 50% of Iinax: 35 nm
- Half angle SFH 4258: +15°
- Half angle SFH 4259: +25°
- Active chip area: 0.09 mm²
- Dimensions of active chip: 0.3 x 0.3 mm
- Peak radiant flux: 45 mW
- Maximum forward voltage at 100 mA: 1.5 V (<1.8 V)
- Surge current: 15 A
- Maximum reverse voltage: 5 V
- Maximum power dissipation: 180 mW
- Operating temperature range: -40°C to +100°C
- Thermal resistance junction - ambient (FR4 mounted): 300 K/W
- Thermal resistance junction - soldering point (metal block mounted): 140 K/W
- Maximum storage temperature: -40°C to +100°C
Buy the OSRAM Series Infrared Emitter: SFH4258
Purchase the OSRAM Series SFH4258 infrared LED online today and ensure high-intensity IR emission at 850 nm for your surveillance cameras, communication devices, or optical sensors. Designed for high current operation at elevated temperatures, it delivers a peak radiant flux of 45 mW with a narrow half angle of +15°. This robust, RoHS-compliant component is crucial for precision applications requiring safe, concentrated infrared light, making it an ideal choice for professional and industrial projects. Buy now for quick delivery and enhanced project performance!
Order your OSRAM Series SFH4258 infrared LED today and enhance your optical sensor projects with reliable, high-power IR emission at 850 nm.
