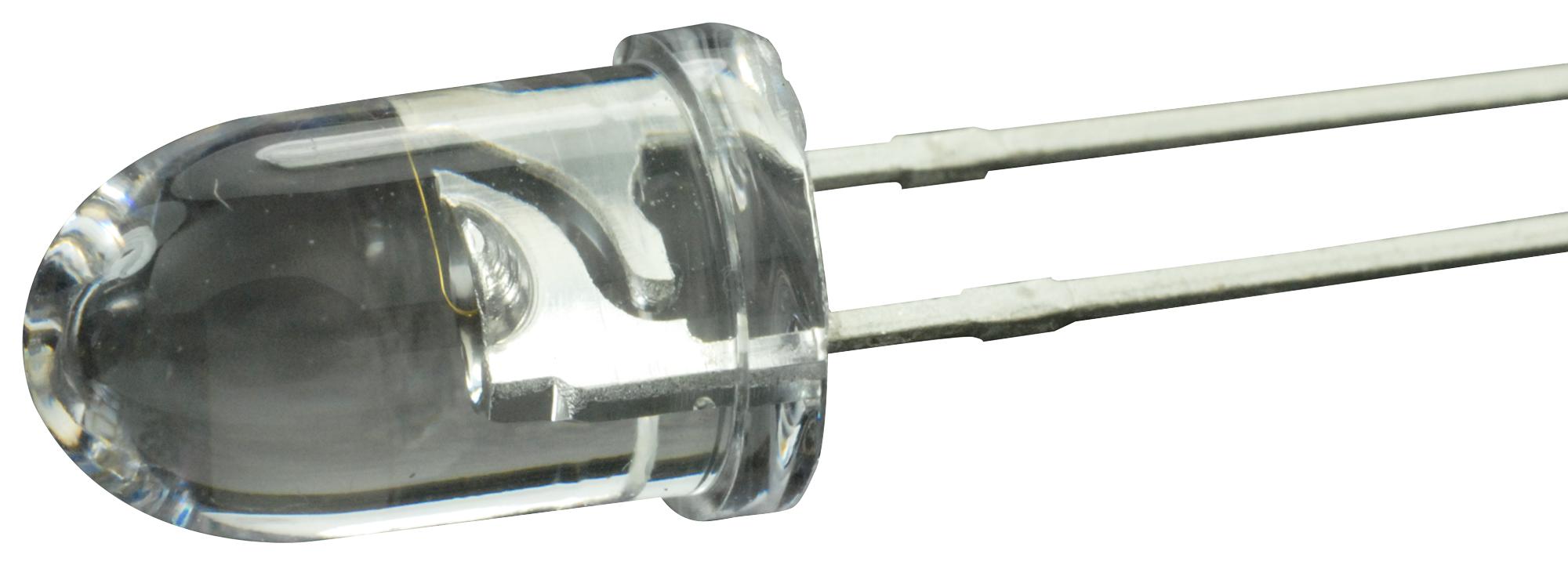

AMS OSRAM GROUP SFH4550 Infrared Emitter
The SFH4550 from Osram is a high-power infrared emitter with a radial leaded design, suitable for applications such as camera illumination, sensor technology, data transmission, and smoke detectors. It features a narrow emission angle of ±3°, high radiant intensity, and operates at a peak wavelength of 860nm with a forward current of 100mA. The device has a forward voltage of 1.5V, switching times of 12ns, and can dissipate 180mW. It works within a temperature range of -40°C to 100°C, with safety precautions aligned with IEC standards.
AMS OSRAM GROUP SFH4550 Infrared Emitter Specifications:
- Wavelength at peak emission: 860 nm
- Centroid wavelength: 850 nm
- Spectral bandwidth at 50% of Iinax: 42 nm
- Half angle (emission angle): ±3°
- Active chip area: 0.09 mm²
- Dimensions of active chip: 0.3 x 0.3 mm
- Peak radiant intensity: > 400 mW/sr
- Maximum radiant intensity: 800 mW/sr
- Total radiant flux: approximately 50 mW
- Forward voltage: 1.5 V at 100 mA
- Switching times: 12 ns (from 10% to 90%)
- Reverse voltage: 5 V
- Power dissipation: 180 mW
- Operating temperature range: -40°C to 100°C
- Thermal resistance junction to ambient: 450 K/W
Buy the Osram SFH4550 – Reliable Infrared Emitter for Industrial Applications
Purchase the Osram SFH4550 infrared emitter online now, designed for high performance in camera illumination, sensor tech, data transfer, and smoke detection. This compact, high radiant intensity device features a narrow 3° emission angle, operates at 860nm wavelength, handles up to 180mW power, and has quick switching times of 12ns. It is suitable for demanding industrial environments, ensuring reliability, safety, and compliance with IEC standards. Order today for efficient, durable infrared light solutions tailored for various electronic and safety systems.
Get Osram SFH4550 today—built for precision and long-lasting durability in high-power infrared applications.
Frequently Asked Questions
Where can I buy AMS OSRAM GROUP SFH4550?
You can click on the BUY or RFQ button to purchase SFH4550 from an authorized AMS OSRAM GROUP distributor.
How do I troubleshoot issues or seek technical support for part SFH4550?
You can download the SFH4550 datasheet or visit the AMS OSRAM GROUP website for support.
Who is the manufacturer of SFH4550?
AMS OSRAM GROUP
