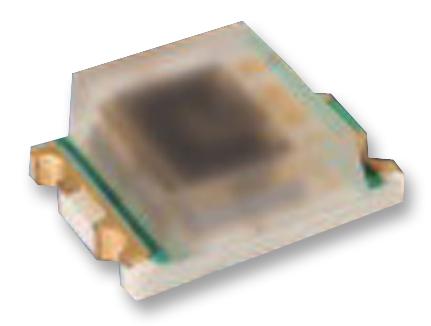

AMS OSRAM GROUP SFH571123 Ambient Light Sensor
The SFH5711-2/3 is a high-precision ambient light sensor featuring an opto hybrid design with a logarithmic current output. It is optimized to match the human eye's sensitivity, providing accurate light measurement across a wide illumination range. The sensor exhibits a low temperature coefficient of spectral sensitivity and operates reliably within a temperature range of -40°C to 100°C. It is suitable for use in automotive and consumer electronics applications.
AMS OSRAM GROUP SFH571123 Ambient Light Sensor Specifications:
- Spectral range of sensitivity: 475-650 nm
- Response time: 0.03 ms to 0.1 ms
- Output capacitance: 3 pF
- Supply voltage: 2.3 to 5.5 V
- Operating temperature: -40°C to 100°C
- Maximum power supply voltage: 6 V
- Electrostatic discharge (ESD): 2 kV
- Output current at 1000 lx: 25-34 pA
- Maximum output voltage: Voc < Vv
- Dimensions: 0.4 x 0.4 mm (sensitive area)
- Pin configuration: 4-pin, with GND, Veo, Lour
Buy the OSRAM Series SFH 5711 Ambient Light Sensor: SFH5711
Purchase the OSRAM SFH 5711 ambient light sensor online today. This high-precision device provides accurate, wide-range light detection essential for automotive headlamp control and display backlighting. Its low temperature coefficient and logarithmic output ensure reliable performance across various environments. Suitable for automotive and consumer electronics, this sensor offers exceptional sensitivity, quick response times, and robust electrostatic discharge protection. Get yours now to enhance your lighting and display applications with dependable, high-quality sensing technology.
Order your OSRAM Series SFH 5711 ambient light sensor today and ensure precise light measurement for automotive and mobile device projects.
