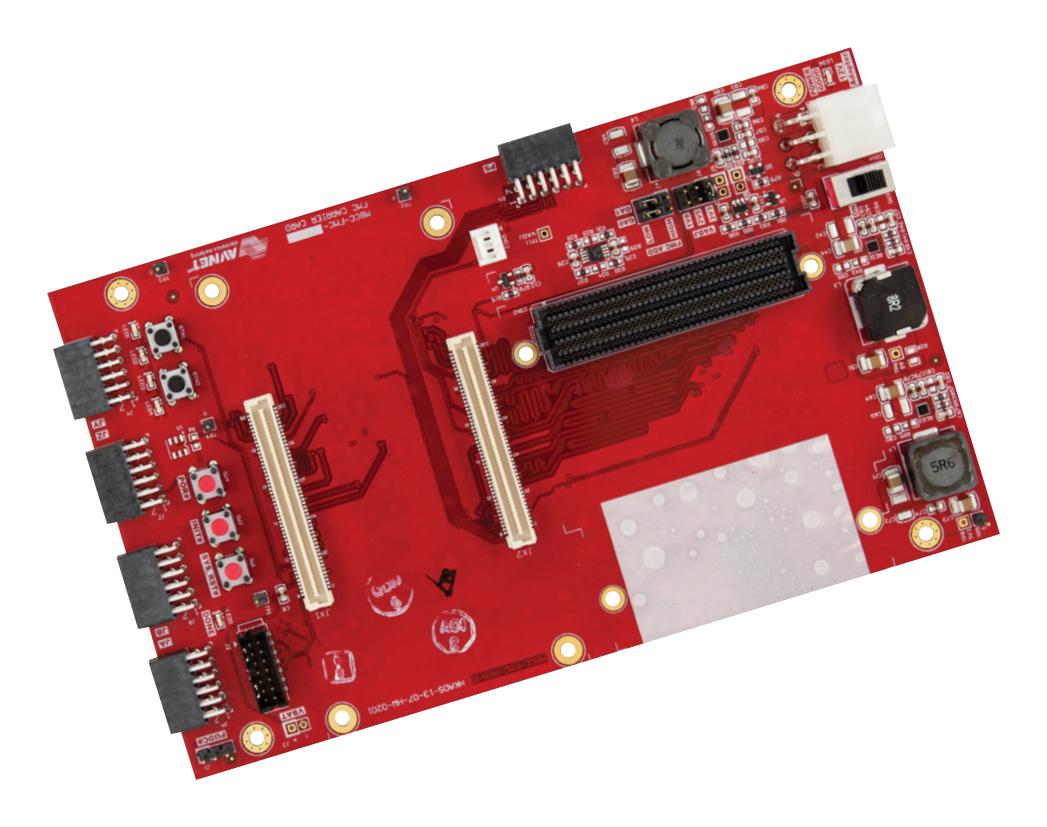

AVNET AESMBCCFMCG FMC Carrier Card
The MicroZed™ FMC carrier card supports the MicroZed evaluation kit and System on Module (SOM), providing easy access to all 108 user I/O available from the MicroZed SOM. It features two 100-pin MicroHeaders that connect to the MicroZed, linking 75 programmable logic I/O lines to a low-pin-count VITA 57 FPGA Mezzanine Card (FMC) connector. The remaining I/O are connected to onboard features including push buttons, LEDs, EEPROMs, and five Pmod-compatible interfaces. Suitable for Zynq evaluation, prototyping, FMC development, industrial automation, testing, motor control, and machine vision, this card includes a 2Kb MAC ID EEPROM and an optional 1Kb SHA-1 EEPROM, with power supplied via a 12V/5A input, and an optional fan header. Package includes product, power supply, mounting hardware, and quick start guide, with lead times potentially extended due to high demand.
AVNET AESMBCCFMCG FMC Carrier Card Specifications:
- Two 100-pin MicroHeaders for connection to MicroZed
- Low-pin-count VITA 57 FMC interface with 72 PL I/Os (36 differential pairs)
- Access to 8 MIO and 31 PL I/O (15 are Zynq-7000 Z-020 only)
- Push button switches and LEDs for user interaction
- Includes 2 Kb MAC ID EEPROM, optional 1 Kb SHA-1 EEPROM
- Power input: 12V, 5A through dual 3-pin connectors
- Onboard regulators: 5V @ 2A for MicroZed, 1.8/2.5/3.3V @ 4A for I/O and VADJ, 3.3V @ 3A for FMC and Pmods
- Features optional fan header and resistor-selectable voltages for cooling
- Dimensions and features support industrial automation, test, motor control, and machine vision applications
- Includes power supply, mounting hardware, and quick start guide
Buy the Avnet AESMBCCFMCG – Reliable FMC Carrier Card for Industrial Applications
Purchase the MicroZed FMC carrier card online to accelerate your evaluation, prototyping, and industrial automation projects. Featuring 108 user I/O, onboard EEPROMs, multiple interfaces, and robust power management, this carrier card is essential for electronics engineers and system developers. Its compatibility with industry-standard FMC modules and power supply options ensures flexibility for motor control, test systems, and machine vision applications. Order now and benefit from reliable support, quick delivery, and comprehensive hardware for seamless integration in your projects.
Get Avnet MicroZed evaluation and prototyping card today—designed for precision with enhanced I/O and onboard memory features.
