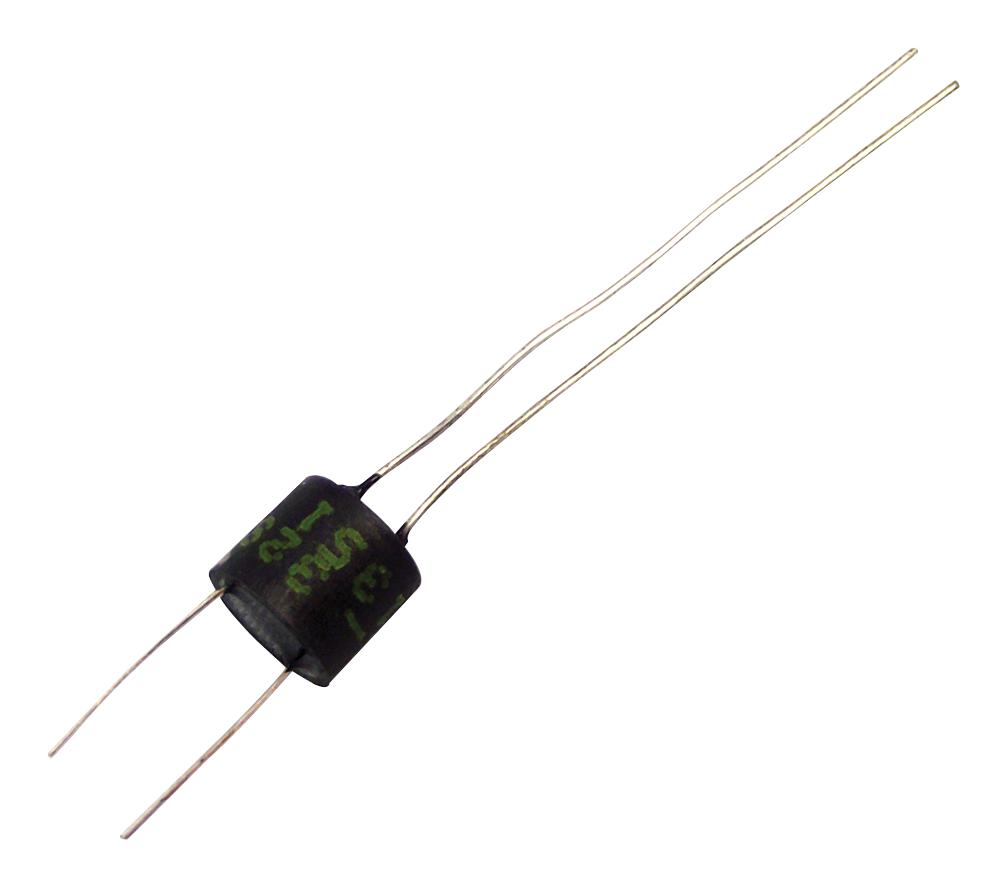

ADVANCED PHOTONIX NSL32 Optoisolator
The NSL-32 optoisolator features a compact, moisture-resistant package that couples an LED input with a photocell. When the LED is on, the photocell resistance drops significantly, allowing current flow; when off, resistance is high. This device is suitable for isolating and switching signals, with low LED forward current requirements, high isolation voltage of 2000V, and fast rise times of 3.5 ms. It operates within -40°C to +75°C temperature range, making it ideal for industrial control and signal isolation applications requiring high reliability and performance.
ADVANCED PHOTONIX NSL32 Optoisolator Specifications:
- Forward Current: 40 mA
- Forward Voltage: 2.0 V at 16 mA
- Reverse Current: 100 pA at 4 V
- Maximum Cell Voltage: 60 V Peak AC/DC
- Power Dissipation: 50 mW
- On Resistance: 500 Ω at 20 mA
- Off Resistance: 500 KΩ after 10 sec at 5 V
- Rise Time: 3.5 ms
- Decay Time: 500 ms
- Operating Temperature: -40°C to +75°C
- Storage Temperature: -40°C to +75°C
- Soldering Temperature: 260°C
- Isolation Voltage: 2000 V peak
- Lead spacing tolerance: ±0.13 mm
- Dimensions: 0.25 x 0.64 mm the cathode lead
- Derates linearly to 0 at 75°C
Buy the Buy Lonex Optoisolator Part Number NSL-32 Online
Purchase the Lonex NSL-32 optoisolator online today and get a compact, reliable device for signal isolation, control circuits, and automation systems. Featuring a high voltage isolation of 2000V peak, low forward current of 40 mA, and a fast rise time of 3.5 ms, this optoisolator is perfect for industrial applications requiring high performance and durability. Easy to install and operate within -40°C to +75°C, it ensures high efficiency and safety in your electronic projects and control panels. Secure yours now for seamless integration and dependable operation.
Buy Lonex NSL-32 optoisolator now and ensure reliable signal isolation with high voltage withstand and fast response suitable for industrial control.
