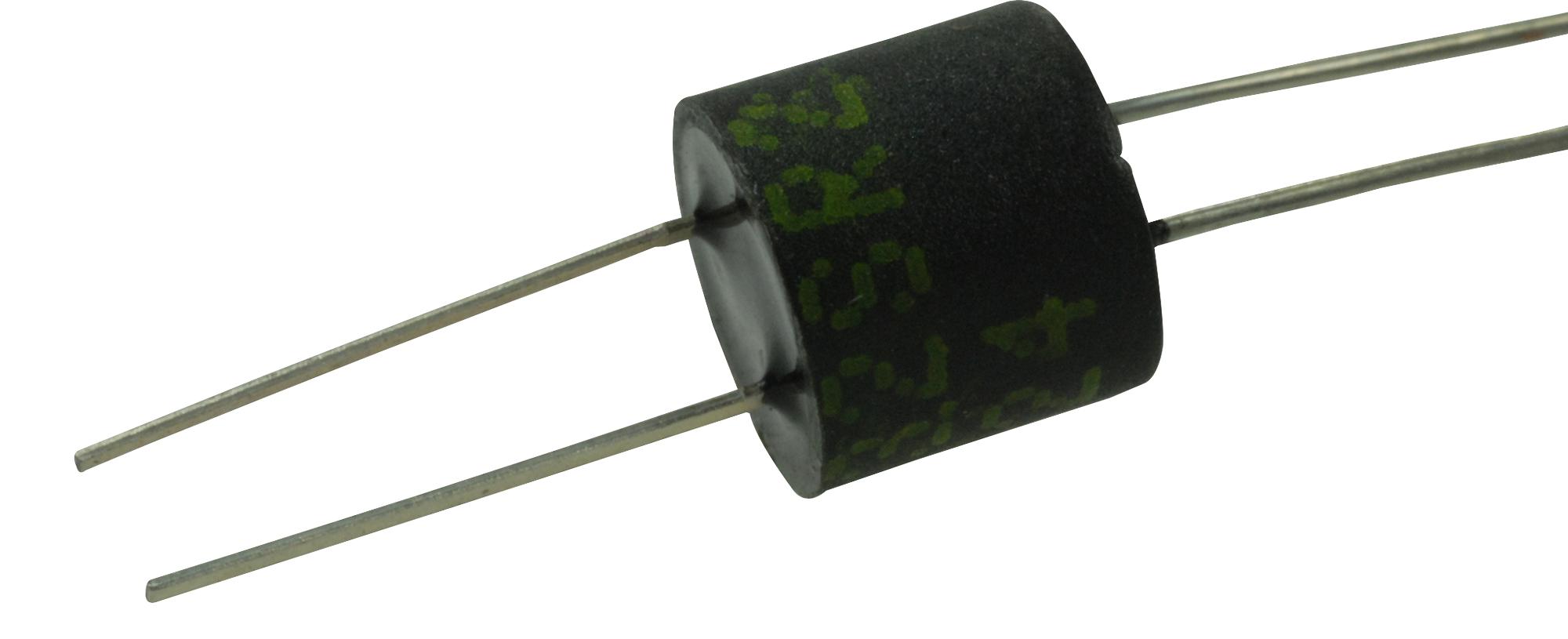

ADVANCED PHOTONIX NSL32SR2 Resistive optocoupler
The NSL-32SR2 is a resistive optocoupler combining an LED input with a photocell that offers high resistance when off and low resistance when on. Its compact, moisture-resistant package ensures durability in industrial environments. The device features low ON resistance, minimal LED current requirements, and passive resistance output for reliable control applications. It operates within -40°C to +75°C, with a maximum isolation voltage of 2000 V, and is ideal for industrial sensing, automation, and electronic control systems that demand precision and durability in harsh conditions.
ADVANCED PHOTONIX NSL32SR2 Resistive optocoupler Specifications:
- Isolation Voltage: 2000 V
- Operating Temperature: -40°C to +75°C
- Storage Temperature: -40°C to +75°C
- Soldering Temperature: +260°C (within 0.05 inches from case for less than 5 sec.)
- Forward Current: 25 mA
- Forward Voltage: 25 V
- Reverse Current: 10 pA
- Maximum Cell Voltage: 60 V
- Power Dissipation: 50 mW
- On Resistance: 40Ω at 20mA
- Off Resistance: 1-5 MΩ after 10 sec off
- Rise Time: Data not specified, typical in milliseconds
- Decay Time: Data not specified, typical in milliseconds
- Cell Temp. Coefficient: 0.7 SIC
- Dimensions: unspecified but small, moisture-resistant package
Buy the Advanced Photonix Series Optocoupler: NSL32SR2
Purchase the Advanced Photonix Series NSL-32SR2 optocoupler online today to enhance your industrial control systems. This resistive optocoupler offers high resistance when off and low resistance when on, ensuring precise signal isolation. Its compact, moisture-resistant package makes it ideal for demanding environments. With a maximum isolation voltage of 2000 V and operating temperatures from -40°C to +75°C, it provides reliable performance. Whether used in automation, sensing, or electronic applications, this component delivers durability, efficiency, and low power consumption—order now for dependable project results.
Order your Advanced Photonix Series NSL-32SR2 optocoupler today and ensure reliable industrial sensing with its compact, moisture-resistant design.
Frequently Asked Questions
Where can I buy ADVANCED PHOTONIX NSL32SR2?
You can click on the BUY or RFQ button to purchase NSL32SR2 from an authorized ADVANCED PHOTONIX distributor.
How do I troubleshoot issues or seek technical support for part NSL32SR2?
You can download the NSL32SR2 datasheet or visit the ADVANCED PHOTONIX website for support.
Who is the manufacturer of NSL32SR2?
ADVANCED PHOTONIX
