ADVANCED PHOTONIX NSL32SR3 Optocoupler
The NSL-32SR3 from Advanced Photonix is an axial leaded optocoupler featuring an LED input and a photocell. It provides high resistance when off and low resistance when on, with a compact, moisture-resistant design. Capable of fast rise and decay times, passive resistance output, and operating over -40°C to 75°C, it has a peak isolation voltage of 2000V and a power dissipation of 50mW. Ideal for industrial applications, this device ensures reliable signal isolation and excellent distortion performance.
ADVANCED PHOTONIX NSL32SR3 Optocoupler Specifications:
- Absolute Maximum Ratings: Storage & Operating Temperature -40°C to +75°C
- Soldering Temperature: 260°C
- Isolation Voltage (peak): 2000V
- Photocell Resistance vs. LED Current: High when off, low when on
- LED Forward Current: 25 mA
- LED Forward Voltage: 2.5 V at 20 mA
- Reverse Current: 10 µA at 4 V
- Maximum Cell Voltage: 60 V (Peak AC/DC)
- Power Dissipation: 50 mW
- On Resistance: 60 Ω at 20 mA
- Off Resistance: 25 MΩ after 10 sec., 0.5 Vdc on cell
- Rise Time: 5 ms
- Decay Time: 10 ms
- Temperature Coefficient: 0.7 W/°C for I > 5 mA

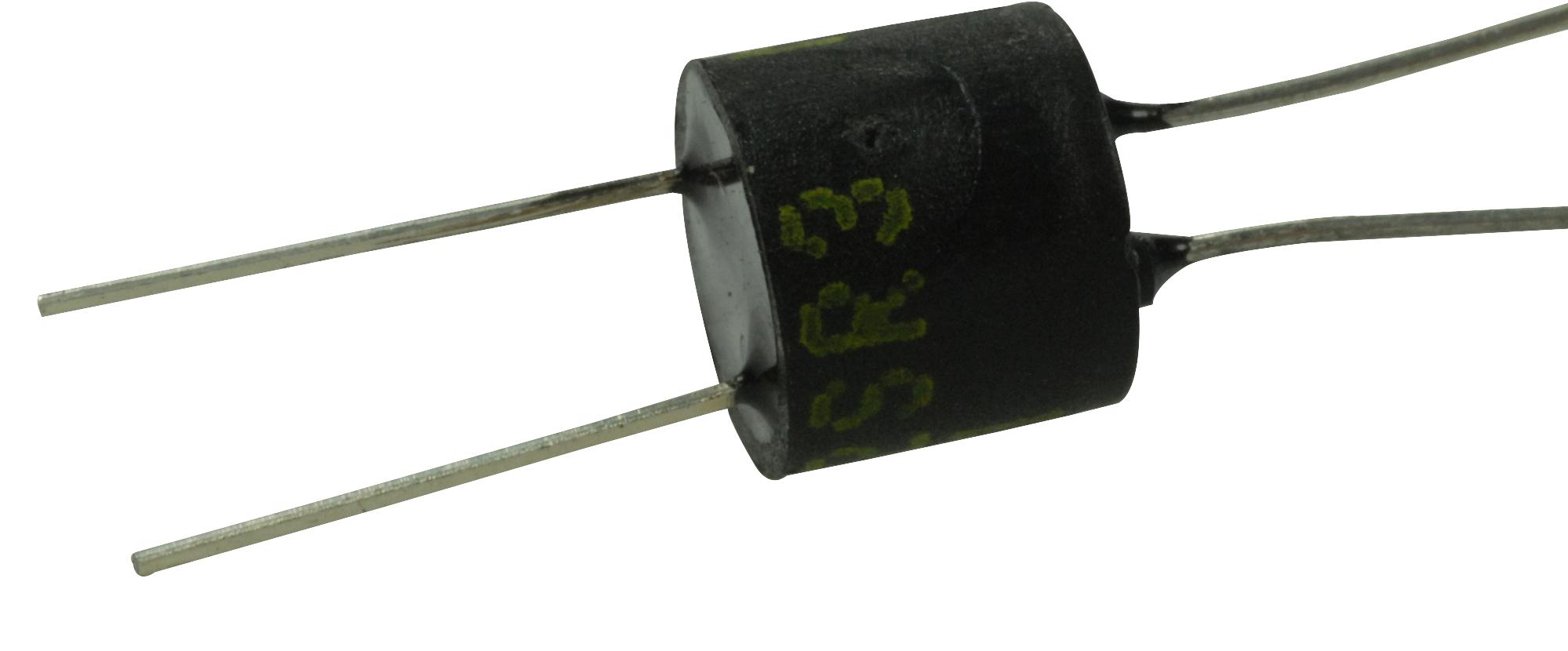

Buy the Buy Silonex Optocoupler Part Number NSL-32SR3 Online
Discover the high-performance optocoupler NSL-32SR3 by Silonex, designed for reliable signal isolation in industrial setups. With an axial leaded design, it features a compact, moisture-resistant package, low LED current, and fast rise and decay times. Capable of withstanding peak isolation voltages up to 2000V and operating temperatures from -40°C to 75°C, this optocoupler ensures efficient electrical isolation, minimal distortion, and robust operation for various demanding applications. Secure yours online today for enhanced system performance.
Buy Silonex NSL-32SR3 now and experience unmatched reliability and performance with fast response times and high isolation voltage for industrial applications.
Frequently Asked Questions
Where can I buy ADVANCED PHOTONIX NSL32SR3?
You can click on the BUY or RFQ button to purchase NSL32SR3 from an authorized ADVANCED PHOTONIX distributor.
How do I troubleshoot issues or seek technical support for part NSL32SR3?
You can download the NSL32SR3 datasheet or visit the ADVANCED PHOTONIX website for support.
Who is the manufacturer of NSL32SR3?
ADVANCED PHOTONIX
