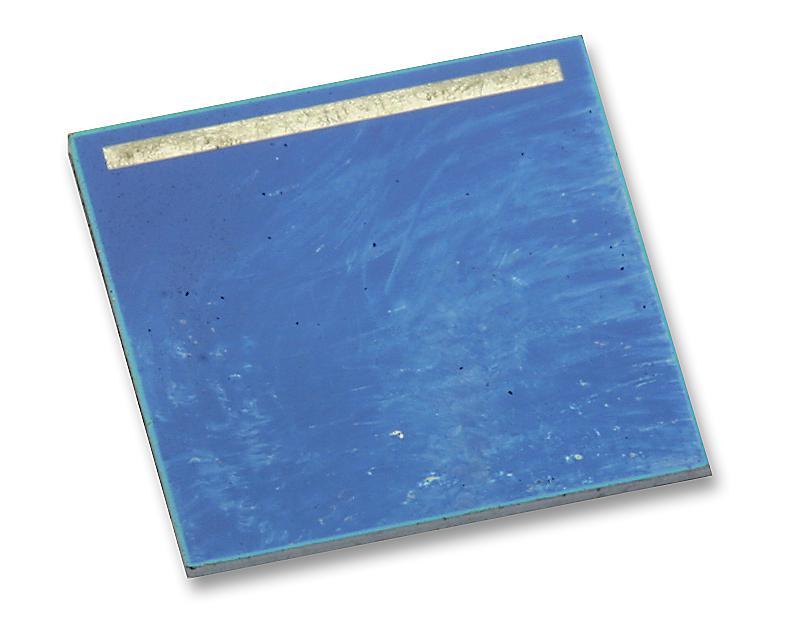

ADVANCED PHOTONIX SLCD61N5 Photodiode
The SLCD-61N5 is a silicon solderable planar photodiode with low cost, high reliability, and a linear short-circuit current over a broad illumination spectrum. Designed for light sensing and power generation, it boasts stability and high efficiency due to oxide passivation, low internal impedance, and high shunt impedance. Its spectral sensitivity ranges from 400 to 1100 nm, with a maximum sensitivity at 930 nm. The device features a visible to IR spectral irradiance range, low capacitance for high-speed operation, and is suitable for instrumentation, sensing, and power conversion applications.
ADVANCED PHOTONIX SLCD61N5 Photodiode Specifications:
- Spectral Range: 400-1100 nm
- Maximum Sensitivity Wavelength: 930 nm
- Spectral Sensitivity: 0.55 A/W at 940 nm
- Acceptance Half Angle: 60 degrees
- Reverse Breakdown Voltage: 20 V
- Junction Capacitance: 2.0 nF at 0 V, 1 MHz
- Reverse Dark Current: 3.3 μA at 5 V
- Short Circuit Current: 25 mA at Ee=25 mW/cm²
- Open Circuit Voltage: 30 V at Ee=25 mW/cm²
- Dimensions: 10.2 mm x 10.2 mm, Sensitive Area: 93.6 sq.mm
- Storage/Operating Temperature: -40°C to +125°C
- Features: Oxide passivation, linear response, high reliability, low capacitance, visible to IR irradiance sensitivity
Buy the Silonex Series Photodiode: SLCD61N5
Order the Silonex SLCD61N5 photodiode online today for reliable light sensing and energy conversion solutions. With high efficiency, fast response, and stable performance, this device is perfect for instrumentation, beam sensing, and power management. Its wide spectral sensitivity from 400 to 1100 nm ensures excellent performance across various applications, while oxide passivation enhances durability. Invest in a cost-effective, high-quality photodiode that offers precision and stability for your industrial or research needs. Buy now for quick delivery and support.
Buy Silonex SLCD61N5 now and experience unmatched reliability and performance in light sensing and power generation applications.
