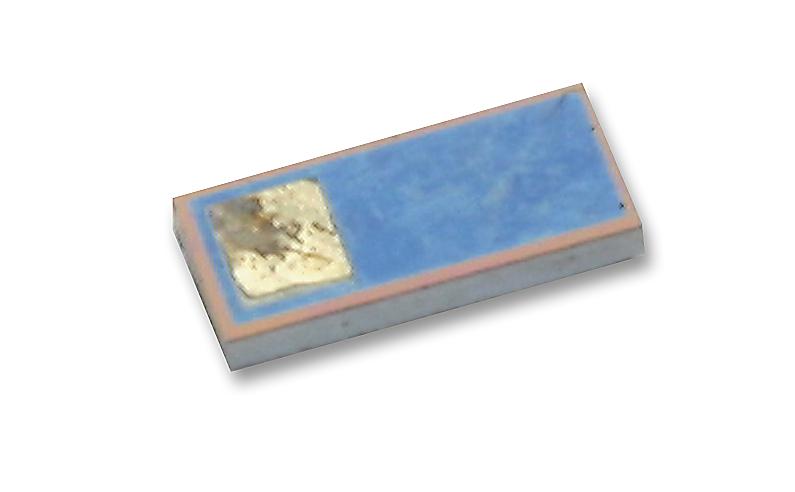

ADVANCED PHOTONIX SLCD61N8 Light Sensing Photodiode
The SLCD-61N8 is a silicon solderable planar photodiode designed for light sensing and power generation applications. It features a linear short circuit current across a broad illumination range, making it suitable for sensing, instrumentation, and power management. The device offers high reliability, oxide passivation, low capacitance for high-speed response, and operates effectively across the visible to infrared spectral range. Its low internal impedance and high shunt impedance ensure stability and efficiency, making it a cost-effective and dependable detector. In multi-element arrays, all cathodes are common to all elements.
ADVANCED PHOTONIX SLCD61N8 Light Sensing Photodiode Specifications:
- Storage Temperature: -40°C to +125°C
- Operating Temperature: -40°C to +125°C
- Spectral Range: 400 to 1100 nm
- Maximum Sensitivity Wavelength: 930 nm
- Spectral Sensitivity: 0.55 AW at 940 nm
- Junction Capacitance: 100 pF at V, Ee=0, f=1MHz
- Open Circuit Voltage: 0.40 V at 25mW/cm²
- Short Circuit Current: 100 to 170 pA at 25mW/cm²
- Reverse Dark Current: 1.7 pA at 5V
- Reverse Breakdown Voltage: 20 V
- Acceptance Half Angle: 60°
- Device Dimensions: Sensitive Area 2.7 sq. mm, dimensions in mm (+/- 0.13)
- Materials: Silicon with oxide passivation
- Features: Low capacitance, high speed, reliable, solderable design
Buy the Silonex SLCD-61N8 – Reliable Photodiode for Industrial Applications
Purchase the Silonex Series SLCD-61N8 photodiode online today and experience the benefits of a high-reliability, cost-effective light detector. With excellent spectral sensitivity from 400 to 1100 nm, low capacitance, and high-speed response, this solderable device is perfect for power generation, sensing, and instrumentation applications. Its stable operation across -40°C to +125°C makes it suitable for various industrial environments. Reliable in multi-element arrays with common cathodes, ensuring efficiency and stability in demanding applications. Order now and upgrade your projects with proven silicon photodiodes.
Order your Silonex Series SLCD-61N8 high-reliability photodiode today and enhance your light sensing and power management projects with dependable performance.
Frequently Asked Questions
Where can I buy ADVANCED PHOTONIX SLCD61N8?
You can click on the BUY or RFQ button to purchase SLCD61N8 from an authorized ADVANCED PHOTONIX distributor.
How do I troubleshoot issues or seek technical support for part SLCD61N8?
You can download the SLCD61N8 datasheet or visit the ADVANCED PHOTONIX website for support.
Who is the manufacturer of SLCD61N8?
ADVANCED PHOTONIX
