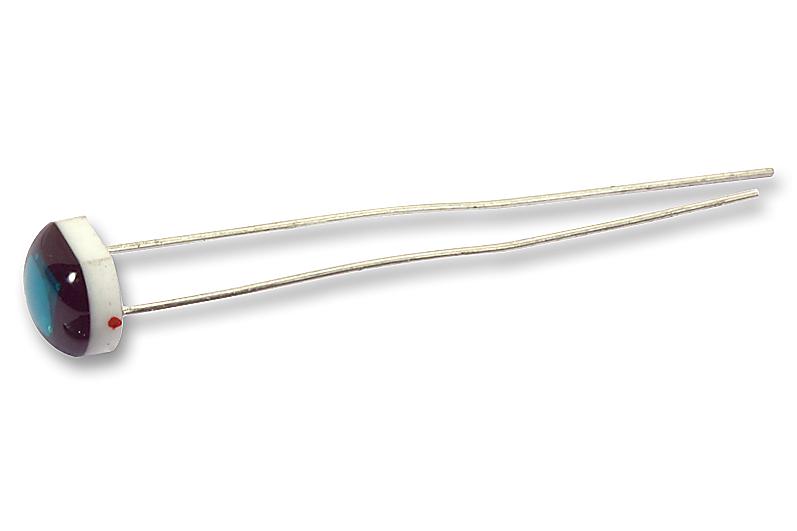

ADVANCED PHOTONIX SLD70BG2A Infrared Rejection Photodiode
The SLD-70 BG2A is a high-sensitivity planar photodiode with built-in IR rejection filter, suitable for low-light and irradiance measurement applications. It operates efficiently in photoconductive and photovoltaic modes, featuring a low dark current of 100 nA, fast switching, and a linear irradiance response. Designed with a 3.6 mm x 3.6 mm active area, it offers excellent optical characteristics, including infrared blocking, a spectral response from 400 to 700 nm, and quick response times. Ideal for industrial lighting, measurement, and optical sensing projects, this diode combines sensitivity with durability in compact packaging.
ADVANCED PHOTONIX SLD70BG2A Infrared Rejection Photodiode Specifications:
- Chip Size: 3.6 mm x 3.6 mm
- Active Area: 9.8 sq mm
- Spectral Range: 400-700 nm
- Maximum Sensitivity Wavelength: 550 nm
- Reverse Dark Current: 100 nA (at V=5V, Ee=0)
- Junction Capacitance: 180 pF
- Rise Time: 4 µs
- Fall Time: 6 ns
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -20°C to +85°C
- Soldering Temperature: 260°C (<5 sec, >2 mm from case)
- IR Rejection Filter: Built-in BG filter
- Response: Linear vs irradiance
- Half Angle: 60°
- Reverse Breakdown Voltage: 50V
- Dark Current: 100 nA
- Max Reverse Voltage: 50V
- Capacitance: 180 pF
- Dimensions: 3.6 mm x 3.6 mm chip, ceramic base with epoxy dome
- Environmental Ratings: UL and CSA compliant
Buy the Buy Advanced Photonix Infrared Rejection Photodiode Part Number SLD70BG2A Online
Purchase your Advanced Photonix SLD70BG2A infrared rejection photodiode online now for high sensitivity and low dark current operation. Perfect for low-light sensing, optical measurement, and industrial automation, this diode features built-in IR blocking filters, fast response times, and a robust ceramic package. Its linear irradiance response from 400 to 700 nm ensures accurate readings across various applications. With excellent durability and easy integration, order today to ensure your projects benefit from superior optical detection technology, reliable performance, and quick delivery, elevating your optical sensing solutions efficiently.
Order your Advanced Photonix SLD70BG2A infrared rejection photodiode today and enhance your optical sensing projects with precision and reliability.
