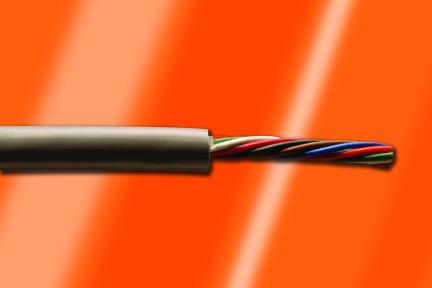

ALPHA WIRE 1174LSL005 Low Smoke Zero Halogen Cable
This cable assembly features 22 AWG tinned copper conductors with a diameter of 0.025 inches and a low smoke zero halogen jacket. It is UL and CSA Type CMG rated, compliant with EU RoHS 2 and REACH regulations, and passes IEC standards for flammability, smoke, and acid gas emission. Designed for flexible industrial wiring, it withstands temperatures from -20°C to 75°C with a bend radius of 10 times the cable diameter. The cable's construction ensures reliability, safety, and compliance for diverse electrical applications.
ALPHA WIRE 1174LSL005 Low Smoke Zero Halogen Cable Specifications:
- Conductor: 22 AWG Tinned Copper
- Wall Thickness: 0.025"
- Insulation: Low Smoke Zero Halogen, Color Code D (White, Green)
- Jacket: Nominal LSZH, Color: Slate, Max Diameter: 0.182 inch
- Temperature Range: -20°C to +75°C
- Voltage Rating: 300V
- Bend Radius: 10X Cable Diameter
- Pull Tension: 22 Lbs Maximum
- Capacitance: 26 pF/ft @ 1 kHz
- Inductance: 0.18 uH/ft
- Conductor DCR: 16.3 Ohms/1000ft @ 20°C
- Passes IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-2 standards
- Certifications: UL Listed, CSA Certified, RoHS and REACH Compliant
Buy the Alpha Wire 1174L– Reliable Low Smoke Zero Halogen Cable for Industrial Applications
Purchase the Alpha Wire 1174L low smoke zero halogen cable online today and ensure your industrial electrical installations are safe, reliable, and compliant with global standards. This UL and CSA rated cable boasts excellent flexibility, low smoke emission, and high durability, making it ideal for harsh environments and sensitive applications. With RoHS and REACH compliance, it meets all environmental regulations. Secure your supply of high-quality wiring solutions now for safe and efficient operations in industrial settings.
Buy Alpha Wire 1174L now and experience unmatched safety, flexibility, and compliance in your industrial wiring projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 1174LSL005?
You can click on the BUY or RFQ button to purchase 1174LSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1174LSL005?
You can download the 1174LSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1174LSL005?
ALPHA WIRE
