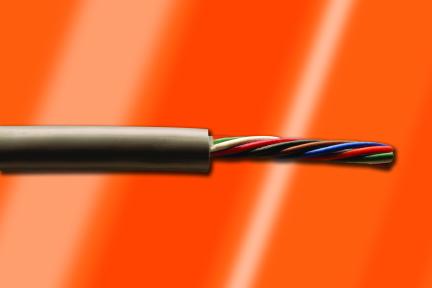

ALPHA WIRE 1175LSL005 Control Cable
The 1175L cable assembly by Alpha Wire features a 22 AWG tinned copper conductor with a 0.010-inch wall, low smoke zero halogen insulation, and a durable jacket. It is cabled with six twists per foot and meets UL, CSA, and European standards including RoHS and REACH compliance. Designed for reliable electrical performance, it passes IEC fire safety and environmental regulations, featuring a voltage rating of 300 V, capacitance of 26 pF/ft, and a conductor resistance of 16.3 ohms/1000 ft. Suitable for control and automation applications requiring flexible, high-quality wire with excellent mechanical properties.
ALPHA WIRE 1175LSL005 Control Cable Specifications:
- Conductor: 22 AWG, Tinned Copper
- Insulation Wall Thickness: 0.010 inches
- Jacket: Nominal, Low Smoke Zero Halogen, 19/486 inches (0.197 Max.)
- Twists Per Foot: 6.0
- Voltage Rating: 300 V
- Capacitance: 26 pF/ft @ 1 kHz
- Inductance: 0.18 μH/ft
- Conductor DCR: 16.3 Ω/1000 ft @ 20°C
- Temperature Range: -20°C to 75°C
- Flammability: IEC 60332-1 compliant
- Smoke Emission: IEC 61034-2 compliant
- Acid Gas Generation: IEC 60754-1 and 60754-2 compliant
- Cable Diameter: Approx. 0.197 inches
- Mechanical: Bend Radius 10x Cable Diameter
- Pull Tension: Max. 27 lbs.
Buy the Alpha Wire Series 1175L Control Cable: 22 AWG Tinned Copper
Purchase the Alpha Wire 1175L control cable online today to benefit from high-quality, UL and CSA certified wiring designed for control and automation systems. This 22 AWG cable features a low smoke zero halogen insulation, a durable jacket, and excellent electrical properties, ensuring safety and compliance with international standards. It is ideal for environments requiring fire-resistant and eco-friendly wiring solutions, providing dependable performance for industrial, commercial, and electronic applications. Enjoy quick delivery and competitive pricing when you buy online today!
Order your Alpha Wire Series 1175L cable today and ensure reliable electrical connections with high-quality control wiring suitable for industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 1175LSL005?
You can click on the BUY or RFQ button to purchase 1175LSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1175LSL005?
You can download the 1175LSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1175LSL005?
ALPHA WIRE
