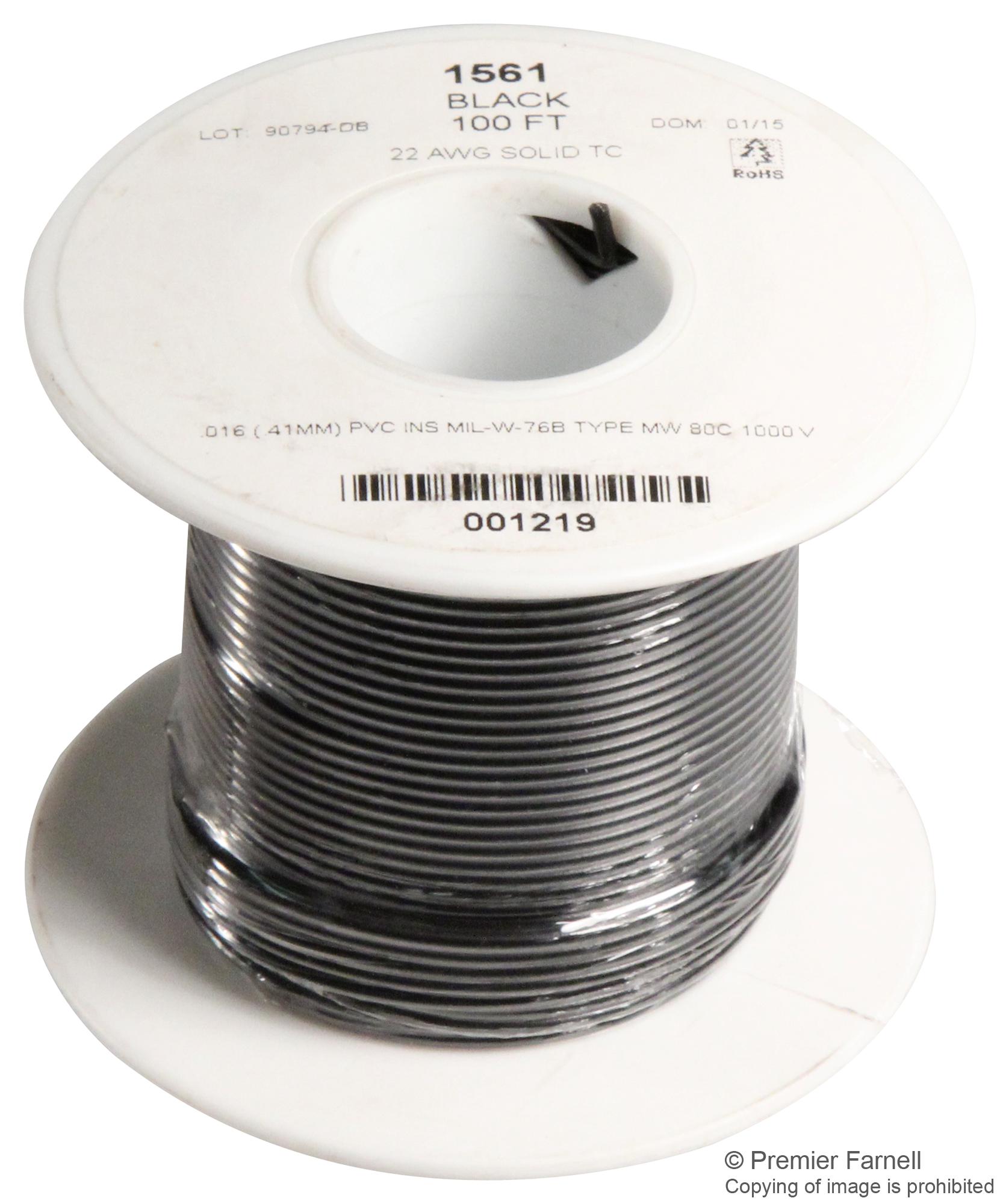

ALPHA WIRE 1561BK005 Hookup Wire
Alpha Wire Part Number 1561 is a flexible hookup wire with a 22 AWG copper conductor, 0.016-inch PVC insulation, and a 1000 V voltage rating. It complies with military and environmental standards including MIL-W-76B, RoHS, REACH, and California Prop 65. The wire features excellent mechanical properties with a temperature range of -40°C to 80°C, a bend radius of 10 times the cable diameter, and a maximum pull tension of 5 lbs. Ideal for electrical and electronic applications requiring high-quality wiring solutions.
ALPHA WIRE 1561BK005 Hookup Wire Specifications:
- Conductor Size: 22 AWG copper
- Insulation Thickness: 0.016 inch PVC
- Voltage Rating: 1000 V
- Temperature Range: -40°C to 80°C
- Bend Radius: 10x cable diameter
- Pull Tension: 5 lbs maximum
- Inductance: 0.07 pH/ft, nominal
- Conductor DCR: 16.9 Ω/1000 ft at 20°C
- Applicable Standards: MIL-W-76B, RoHS, REACH, California Proposition 65
- Lengths Available: 1000 ft and 100 ft spools
- Color Options: White, Black, Red, Green, Yellow, Blue
- Materials: PVC insulation, copper conductor
- Environmental Compliance: RoHS 2, RoHS 3, China RoHS
- Operational Temperature: -40°C to 80°C
Buy the Buy Alpha Wire Part Number 1561 Online
Enhance your electrical projects with Alpha Wire hookup wire, featuring 22 AWG copper conductors and 0.016-inch PVC insulation. This high-quality wire is rated for 1000 V and performs reliably at temperatures from -40°C to 80°C. Suitable for military, industrial, and electronic applications, it meets strict standards including MIL-W-76B, RoHS, and REACH. Available in multiple colors and lengths, this durable cable ensures excellent mechanical properties, ease of installation, and compliance with environmental regulations. Purchase online now for fast, secure delivery and trusted performance.
Buy Alpha Wire 1561 hookup wire now and experience reliable performance, flexibility, and compliance for diverse electrical applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 1561BK005?
You can click on the BUY or RFQ button to purchase 1561BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1561BK005?
You can download the 1561BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1561BK005?
ALPHA WIRE
