ALPHA WIRE 185819BL005 Hook-up Wire

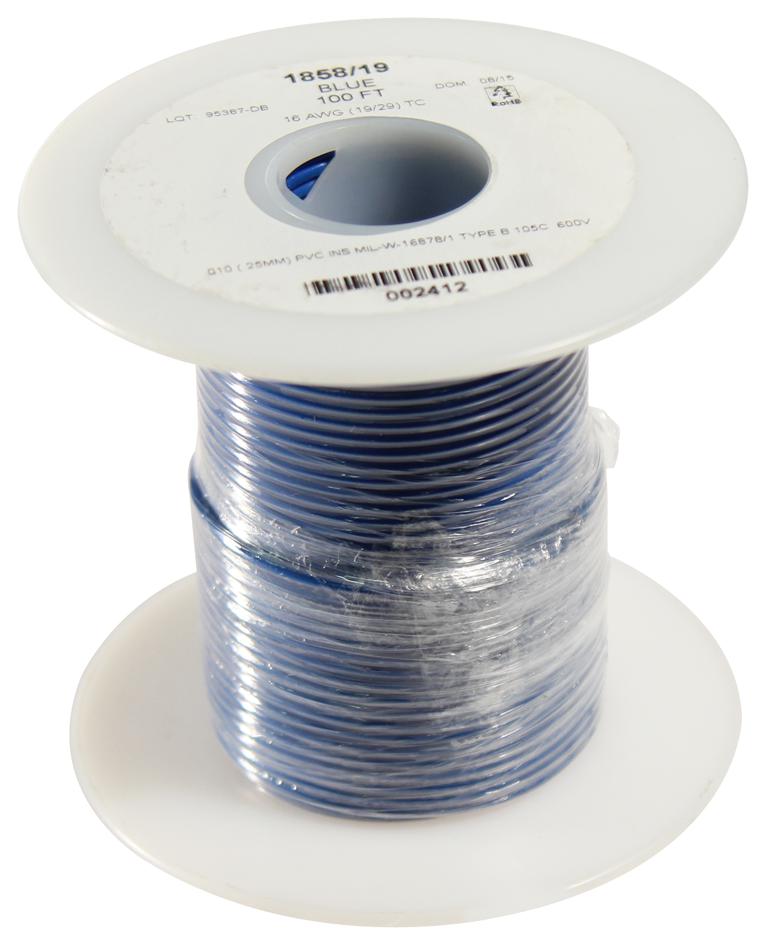

The 1858/19 BL005 is a 100-foot blue hook-up wire featuring a tinned copper conductor and PVC insulation. Designed for control cabinet environments, it is suitable for machine tools, high-temperature ovens, and off-road equipment. This wire provides resistance to wear, abrasion, oil, solvents, and chemicals, ensuring reliable electrical performance in industrial and military applications. It has a maximum pull tension of 19.1 pounds, inductance of 0.03 µH/ft, and can operate from -55°C to 105°C, meeting MIL-W-16878E/1 specifications.
ALPHA WIRE 185819BL005 Hook-up Wire Specifications:
- Conductor: Tinned copper (19/29 AWG TC)
- Insulation: PVC, 0.010 inch wall, white, black, red, green, yellow, blue, brown, orange, slate, violet, white/black, white/red, white/green, white/yellow, white/blue, white/brown, white/orange, white/slate, white/violet
- Diameter: 0.076 +/- 0.002 inches
- Temperature Range: -55°C to 105°C
- Voltage Rating: 600 V
- Maximum Pull Tension: 19.1 pounds
- Inductance: 0.03 µH/ft (nominal)
- Conductor Resistance (DCR): 4.6 Ω/1000 ft @20°C
- Bend Radius: 10X Cable Diameter
- Length Options: 100 ft and 1000 ft spools
- Compliance: MIL-W-16878E/1, RoHS 2, REACH, California Proposition 65
Buy the Buy AlphaWire 1858/19 Part Number 185819BL005 Online
Order the AlphaWire 1858/19 hook-up wire online today to ensure you get high-quality, durable wiring suitable for industrial, control, and military applications. With a length of 100 feet, this blue wire features a tinned copper conductor insulated with resistant PVC material that withstands wear, abrasion, oil, and chemicals. It operates within a temperature range of -55°C to 105°C and has a maximum pull tension of 19.1 pounds, making it perfect for demanding environments requiring reliable electrical connections. Purchase now for fast delivery and trusted performance.
Buy AlphaWire 1858/19 now and experience unmatched reliability and performance in industrial control wiring and military applications.
