ALPHA WIRE 25052BK005 Datasheet & Stock

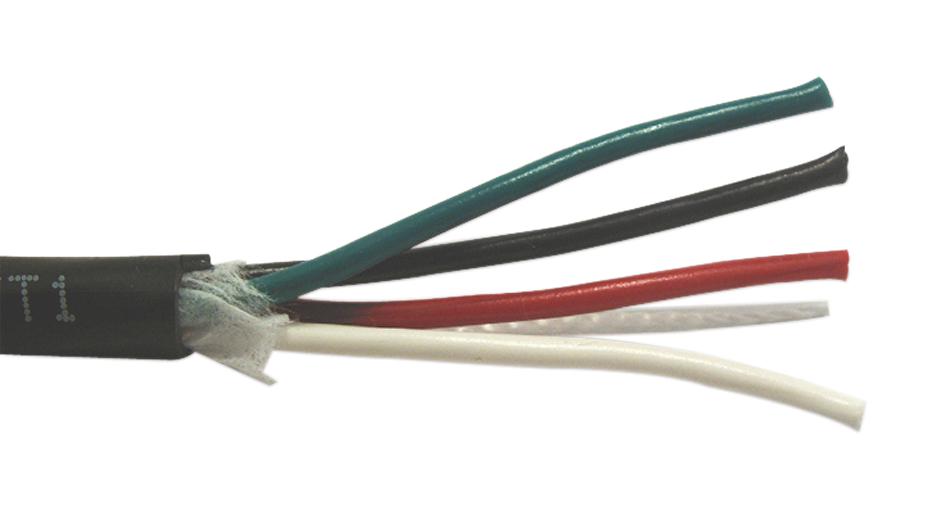

The 25052 BK005 from Alpha Wire is an Xtra-Guard® 2 oil and abrasion-resistant 300V unshielded multiconductor cable designed for industrial environments where mechanical abuse is common. Its rugged polyurethane jacket provides three times the tear and abrasion resistance of standard PVC, offering durability in tough conditions. The cable features two color-coded, 20 AWG stranded tinned copper conductors with premium PVC insulation, and includes a nylon ripcord for easy jacket removal. It has a small diameter suitable for low-noise, controlled environments. The cable is rated for -30°C to +90°C, with excellent low-temperature flexibility, and is resistant to oils, solvents, chemicals, and fuels. It meets UL AWM style 20668, CSA AWM I/II A/B FT1 standards, and passes UL VW-1 and CSA FT4 flame tests. Certified UL listed, recognized, CSA certified, and CE compliant, it is suitable for use in industrial, manufacturing, automotive, aerospace, automation and process control, mining, oil, and gas applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 25052BK005?
You can click on the BUY or RFQ button to purchase 25052BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 25052BK005?
You can download the 25052BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 25052BK005?
ALPHA WIRE
