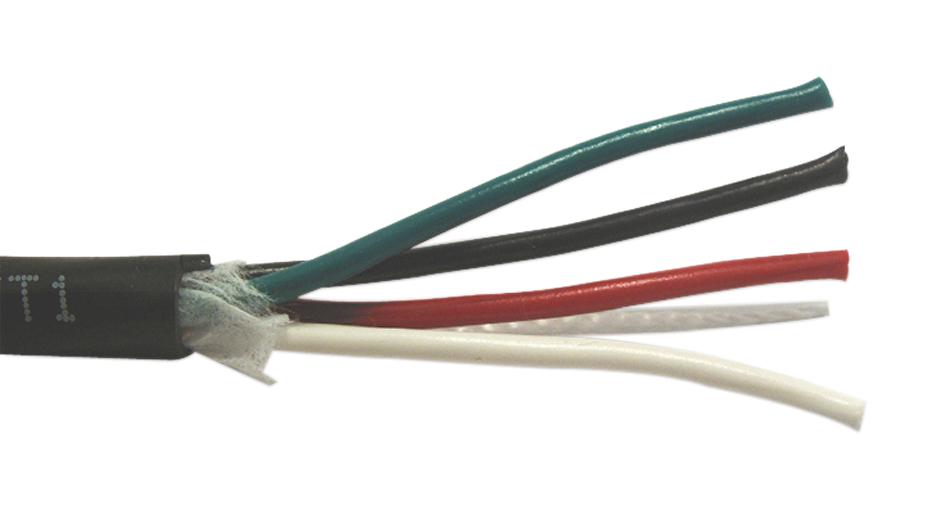

Alpha Wire 25063 BK005 Datasheet & Stock

The 25063 BK005 from Alpha Wire is an Xtra-Guard® 2 oil and abrasion resistant 300V unshielded multiconductor cable for use in industrial applications where abrasion and mechanical abuse is common. Xtra-Guard® 2 cable brings high performance and reliability to the biggest challenges in the toughest environments. Its specially formulated, rugged polyurethane jacket offers three times the tear and abrasion resistance of ordinary PVC. This unshielded cable provides the smallest cable diameter for use in low-noise controlled environments. Nylon ripcord for easy jacket stripping. Its round construction makes it easier to install, seal and route.




Oil and abrasion resistant to withstand mechanical abuse and physical damage

Three color-coded 18AWG (16x30) stranded tinned copper conductors

Premium PVC insulation with 0.016" (0.41mm) thickness

Black, specially formulated Xtra-rugged polyurethane jacket offers UV light stability, tear, cut-through and abrasion resistance

Moderate to high resistance to most oils, solvents, chemicals and fuels

Nylon ripcord for easy jacket stripping

Operating temperature range from -30°C to +90°C

Superior low-temperature flexibility to -30°C

Voltage rated 300V

Meets UL AWM style 20668, CSA AWM I/II A/B FT1 specifications; Passes UL VW-1 and CSA FT4 flame tests





UL listed, UL recognized, CSA certified, CE compliant





Applications


Industrial,

Manufacturing,

Automotive,

Aerospace,

Automation & Process Control,

Mining, Oil & Gas
