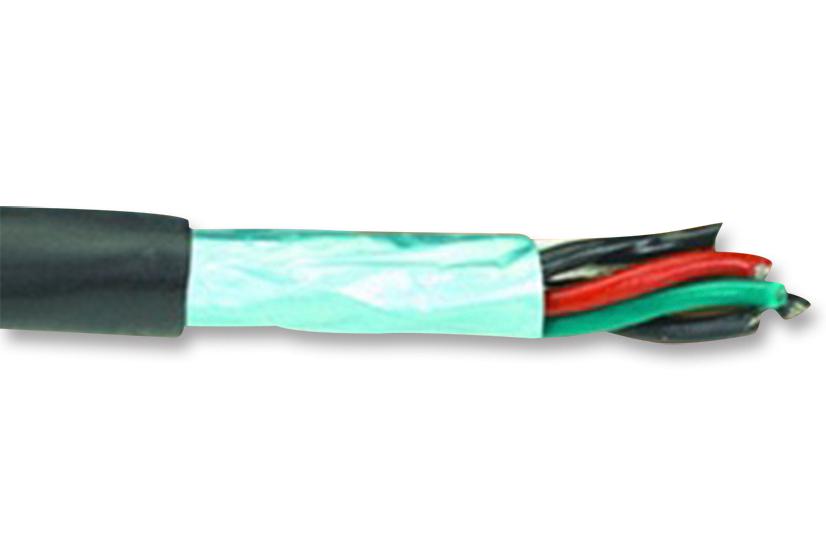

ALPHA WIRE 25094BK005 industrial shielded cable
The 25094 BK005 cable from Alpha Wire is an Xtra-Guard® 2, oil and abrasion-resistant, 300V foil-shielded multiconductor cable designed for industrial applications subject to mechanical stress. Its rugged polyurethane jacket provides three times the tear and abrasion resistance of standard PVC, offering enhanced durability in tough environments. The cable features four 24 AWG stranded tinned copper conductors with premium PVC insulation, an aluminum/polyester/aluminum foil shield for EMI protection at lower frequencies, and a tinned copper drain wire for straightforward grounding. A nylon ripcord allows easy jacket stripping, and its round construction simplifies installation, sealing, and routing. The cable operates within -30°C to +90°C temperatures, maintains flexibility at low temperatures, and is resistant to oils, solvents, chemicals, and fuels. It is UL listed, recognized, CSA certified, and CE compliant, meeting UL AWM style 20668, CSA AWM I/II A/B FT1 standards, with UL VW-1 and CSA FT4 flame test approvals. Suitable for applications in industrial, manufacturing, automotive, aerospace, automation, process control, mining, and oil & gas industries.
ALPHA WIRE 25094BK005 industrial shielded cable Specifications:
- Conductor: 24 AWG stranded tinned copper
- Insulation: PVC, 0.010" wall, semi-rigid
- Jacket: Polyurethane, 0.032" wall, resistant to oils, chemicals, fuels
- Color options: Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Shield: Aluminum/Mylar tape with 25% overlap, foil facing in, drain wire 24 AWG tinned copper
- Ripcord: Nylon, 810 Denier at one end
- Temperature Range: -30°C to +90°C
- Voltage Rating: 300V
- Flexibility: Maintains low-temperature flexibility
- Standards: UL AWM 20668, CSA AWM I/II A/B FT1, VW-1 flame test, CSA FT4
- Environment: Resistant to oils, solvents, chemicals, fuels
- Certification: UL listed, recognized, CSA certified, CE compliant
- Dimensions: Round construction, jacket thickness 0.032"
Buy the AlphaWire 25094 U–Reliable Oil-Resistant Shielded Cable for Industrial Applications
Order the AlphaWire 25094 BK005 today and enjoy a high-performance, oil and abrasion-resistant shielded cable built for demanding industrial applications. Its ultra-durable polyurethane jacket offers superior tear and abrasion resistance, making it ideal for challenging environments involving mechanical stress, chemicals, and fuels. UL listed and CSA certified, this multi-conductor cable features foil shielding for EMI protection and flexible construction for easy installation in automation, manufacturing, automotive, aerospace, and oil & gas industries. Purchase online now for fast delivery and reliable performance.
Get AlphaWire 25094 BK005 today—built for durability in rugged industrial environments and extended operational life.
Frequently Asked Questions
Where can I buy ALPHA WIRE 25094BK005?
You can click on the BUY or RFQ button to purchase 25094BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 25094BK005?
You can download the 25094BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 25094BK005?
ALPHA WIRE
