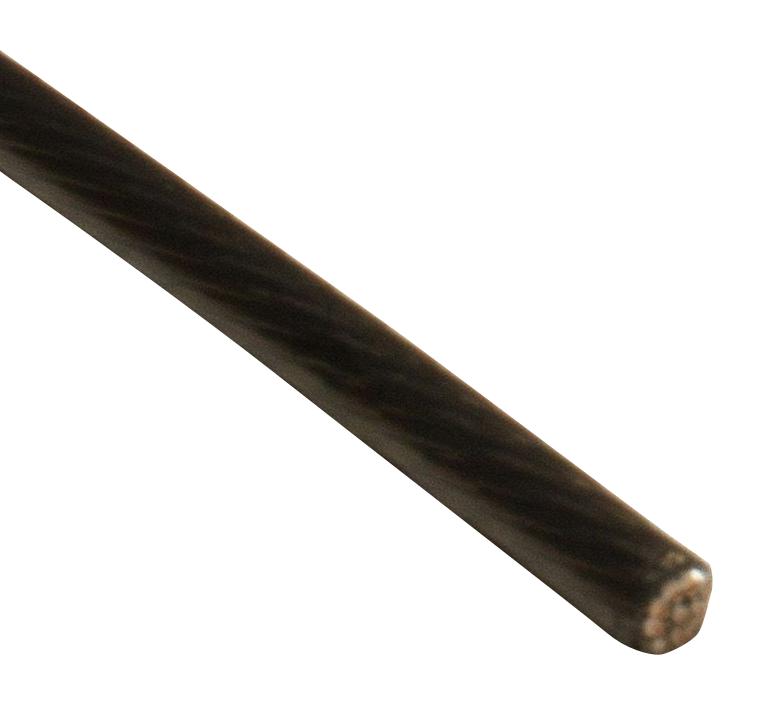

ALPHA WIRE 2616BK005 industrial electrical wire
The product is a flexible, high-temperature rated wire suitable for industrial electrical applications, featuring a 16 AWG copper conductor with a 0.007-inch PFA insulation wall in various colors including white, black, red, green, yellow, blue, brown, and orange. It complies with UL 11905 and European RoHS directives, offering excellent chemical, water, and sunlight resistance. With a temperature range from -150°C to 300°C, it supports up to 600 V, has a bend radius of 10 times the cable diameter, and a maximum pull tension of 20.4 lbs, making it ideal for demanding industrial environments.
ALPHA WIRE 2616BK005 industrial electrical wire Specifications:
- Construction: Copper conductor, PFA insulation
- Conductor Size: 16 AWG (19/.0117) with 10% Nickel plating
- Insulation Wall Thickness: 0.007 inches
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Maximum Pull Tension: 20.4 lbs
- Insulation Color: White, Black, Red, Green, Yellow, Blue, Brown, Orange
- Physical Dimensions: Flare Traverse x Barrel 6.5 x 4 x 2.5 inches, 2.75 x 2 x 1.125 inches
- Environmental: Sunlight, chemical, and water resistant, compliant with RoHS 2&3, REACH
- Electrical: Inductance 0.03 H/ft, conductor DCR 4.6 O/1000f@20°C
Buy the Alpha Wire 2616BK005 – Reliable Industrial Electrical Wire for Applications
Order Alpha Wire 2616BK005 online today and experience dependable performance in your electrical projects. Designed for high-temperature environments, this flexible copper wire with PFA insulation offers excellent chemical, water, and sunlight resistance. Suitable for demanding industrial applications, it supports 600 V and features a durable construction with a safe bending radius. With quick online purchase options, get this reliable, UL and RoHS compliant wire delivered swiftly to your facility, ensuring your installation is both efficient and compliant for all industrial needs.
Get Alpha Wire 2616BK005 today—built for flexibility, high-temperature environments, and reliable electrical performance in industrial settings.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2616BK005?
You can click on the BUY or RFQ button to purchase 2616BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2616BK005?
You can download the 2616BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2616BK005?
ALPHA WIRE
