ALPHA WIRE 2616RD001 High-Temperature Flexible Wire
The product is a high-temperature, flexible wire suitable for electrical and electronic applications with a temperature range of -150°C to 300°C. Its construction features 16 AWG copper conductors with 10% nickel plating and 0.007-inch wall PFA insulation available in multiple colors including white, black, red, green, yellow, blue, brown, and orange. It complies with UL 11905, RoHS, and REACH standards, offering water, chemical, and sunlight resistance. The wire's electrical properties include a 600 V voltage rating, 0.03 H/ft inductance, and a maximum pull tension of 20.4 pounds. It is supplied in continuous lengths up to several hundred feet with specific spool dimensions.
ALPHA WIRE 2616RD001 High-Temperature Flexible Wire Specifications:
- Conductor: 16 AWG, 19 strands, copper, 10% nickel plated
- Insulation: PFA, 0.007 inch wall, white, black, red, green, yellow, blue, brown, orange
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Inductance: 0.03 H/ft
- Conductor Resistance: 4.6 O/1000 feet at 20°C
- Bend Radius: 10X cable diameter
- Pull Tension: 20.4 pounds maximum
- Outer Diameter: approximately 0.070 inches
- Spool Dimensions: 6.5 x 4 x 2.5 inches, 2.75 x 2 x 1.125 inches
- Materials comply with RoHS 2 and RoHS 3, CE Low Voltage Directive 2014/35/EU, REACH, and California Prop 65
- Suitable for environments requiring chemical, water, and sunlight resistance with UL 11905 listing

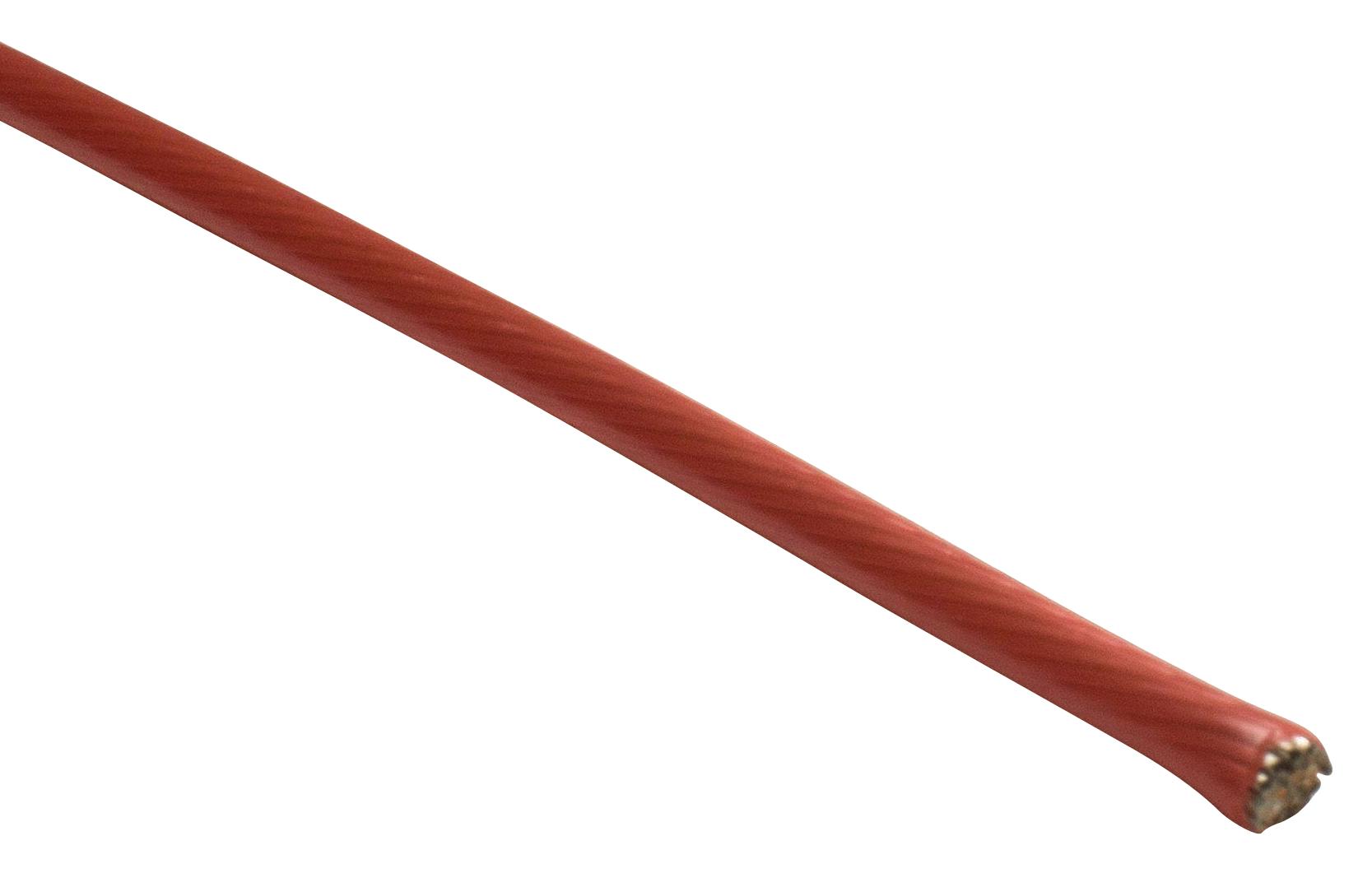

Buy the Buy Alpha Wire High-Temperature Flexible Wire Part Number 2616RD001 Online
Experience the durability and reliability of Alpha Wire’s high-temperature flexible wire, designed for demanding industrial and electronic applications. Featuring 16 AWG copper conductors with 10% nickel plating and PFA insulation, it ensures excellent electrical performance and resistance to chemicals, water, and sunlight. Certified compliant with UL 11905, RoHS, and REACH standards, this wire supports environments requiring high temperature tolerance from -150°C to 300°C. Available in various colors and lengths, it’s an ideal choice for complex wiring and automation systems requiring robust, high-quality cable solutions.
Order your Alpha Wire 2616RD001 flexible high-temperature wire today and ensure reliable performance for your critical electrical projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2616RD001?
You can click on the BUY or RFQ button to purchase 2616RD001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2616RD001?
You can download the 2616RD001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2616RD001?
ALPHA WIRE
