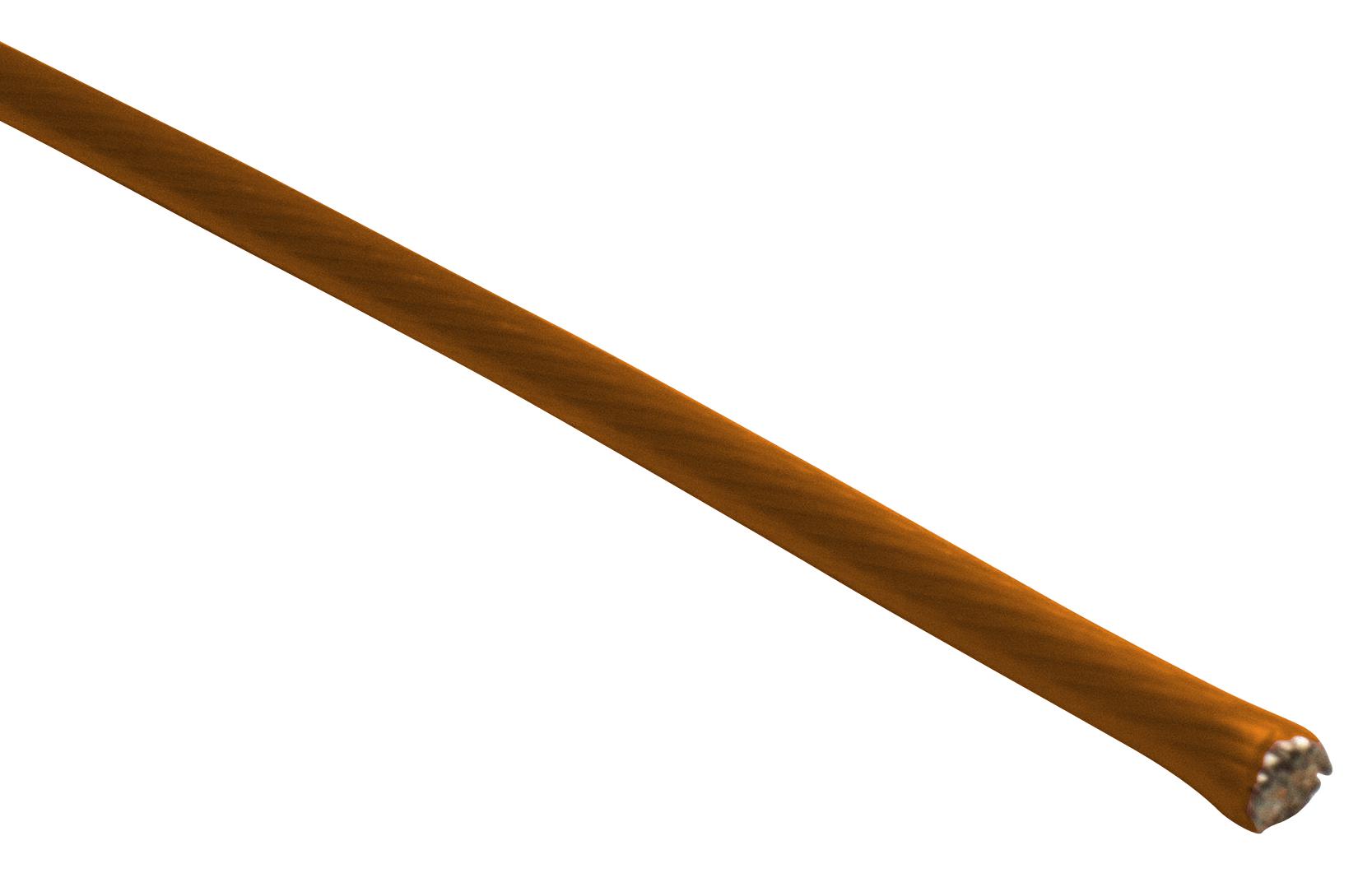

ALPHA WIRE 2618BR005 PFA Hook-Up Wire
The Alpha Wire 2618 BR005 is a high-performance hook-up wire designed for use in a variety of industrial and commercial applications. Constructed with 19/30 stranded 18 AWG nickel-plated copper conductor and a durable PFA insulation jacket, this wire provides exceptional resistance to high temperatures, chemicals, and UV exposure. Its robust construction and reliable electrical properties make it ideal for applications requiring flexibility and longevity in harsh environments. The wire is RoHS compliant, ensuring adherence to environmental regulations. Typical applications include aerospace, medical devices, and industrial automation where reliable performance and resistance to extreme conditions are critical.
ALPHA WIRE 2618BR005 PFA Hook-Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 18 (19/30) AWG 10% Nickel Plated Copper
- Insulation: 0.007" Wall, Nom. PFA
- Diameter (In): 0.047
- Insulation Diameter: 0.061+/- 0.002
- Color(s): WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN ORANGE
- UL: AWM/STYLE 11905
- Voltage Rating: 300°C / 600 VRMS
- Sunlight Resistant: Yes
- Chemical Resistant: Yes
- Water Resistant: Yes
- CE: EU Low Voltage Directive 2014/35/EU
- Temperature Range: -150 to 300°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 14.9 Lbs, Maximum
- Voltage Rating (Electrical): 600 VRMS
- Inductance: 0.03 μH/ft, Nominal
- Conductor DCR: 6.3 Ω/1000ft @20°C, Nominal
- Packaging (1000 FT): 6.5 x 4 x 2.5 Continuous length
- Packaging (100 FT): 2.75 x 2 x 1.125 Continuous length
