ALPHA WIRE 2620BK005 High-Temperature Electrical Wire

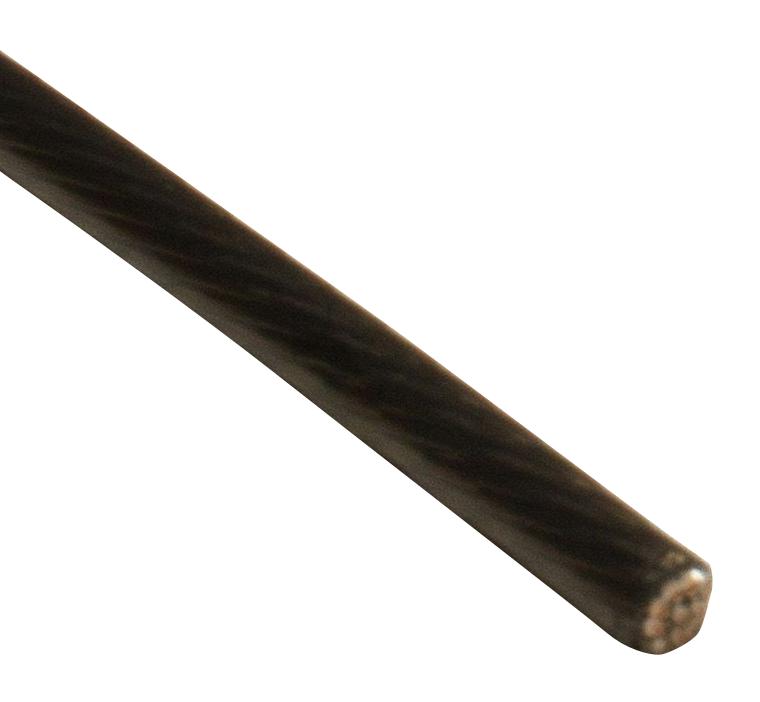

The product is a high-temperature resistant electrical wire with a 20 AWG copper conductor, coated with PFA insulation, designed for demanding environments. It withstands temperatures from -150°C to 300°C, offers a maximum pull tension of 9.6 lbs, and features a voltage rating of 600 V. Its construction includes a nickel-plated copper conductor and a 0.007-inch wall PFA insulation available in multiple colors including white, black, red, green, yellow, blue, brown, and orange. Certified for UL AWM style 11905, it complies with RoHS and REACH standards, suited for industrial applications requiring durability and chemical resistance.
ALPHA WIRE 2620BK005 High-Temperature Electrical Wire Specifications:
- Conductor Diameter: 0.038 inches
- Insulation Wall Thickness: 0.007 inches
- Insulation Material: PFA
- Color Options: White, Black, Red, Green, Yellow, Blue, Brown, Orange
- Voltage Rating: 600 V
- Temperature Range: -150°C to 300°C
- Bend Radius: 10X cable diameter
- Pull Tension: 9.6 Lbs maximum
- Inductance: 0.03 H/ft
- Conductor DCR: 9.9 Q/1000ft at 20°C
- Cable Lengths Available: 100 ft, 1000 ft
- Certification: UL AWM 11905, RoHS, REACH compliant
- Environmental Resistance: Sunlight, Chemical, Water resistant
Buy the Alpha Wire Series 711 High-Temperature Wiring: 2620
Buy the Alpha Wire Series 711 high-temperature electrical wire online today to ensure your projects benefit from durable, chemical-resistant wiring capable of withstanding extreme temperatures from -150°C to 300°C. Perfect for industrial automation, chemical processing, and water-resistant applications, this UL-approved, RoHS and REACH compliant wire features a 20 AWG copper conductor with PFA insulation for flexibility and safety. With multiple color options and lengths available, it's the ideal choice for reliable electrical connections in challenging environments. Order now for quick delivery.
Order your Alpha Wire Series 711 2620 high-temperature wire today and ensure reliable performance in demanding industrial environments.
