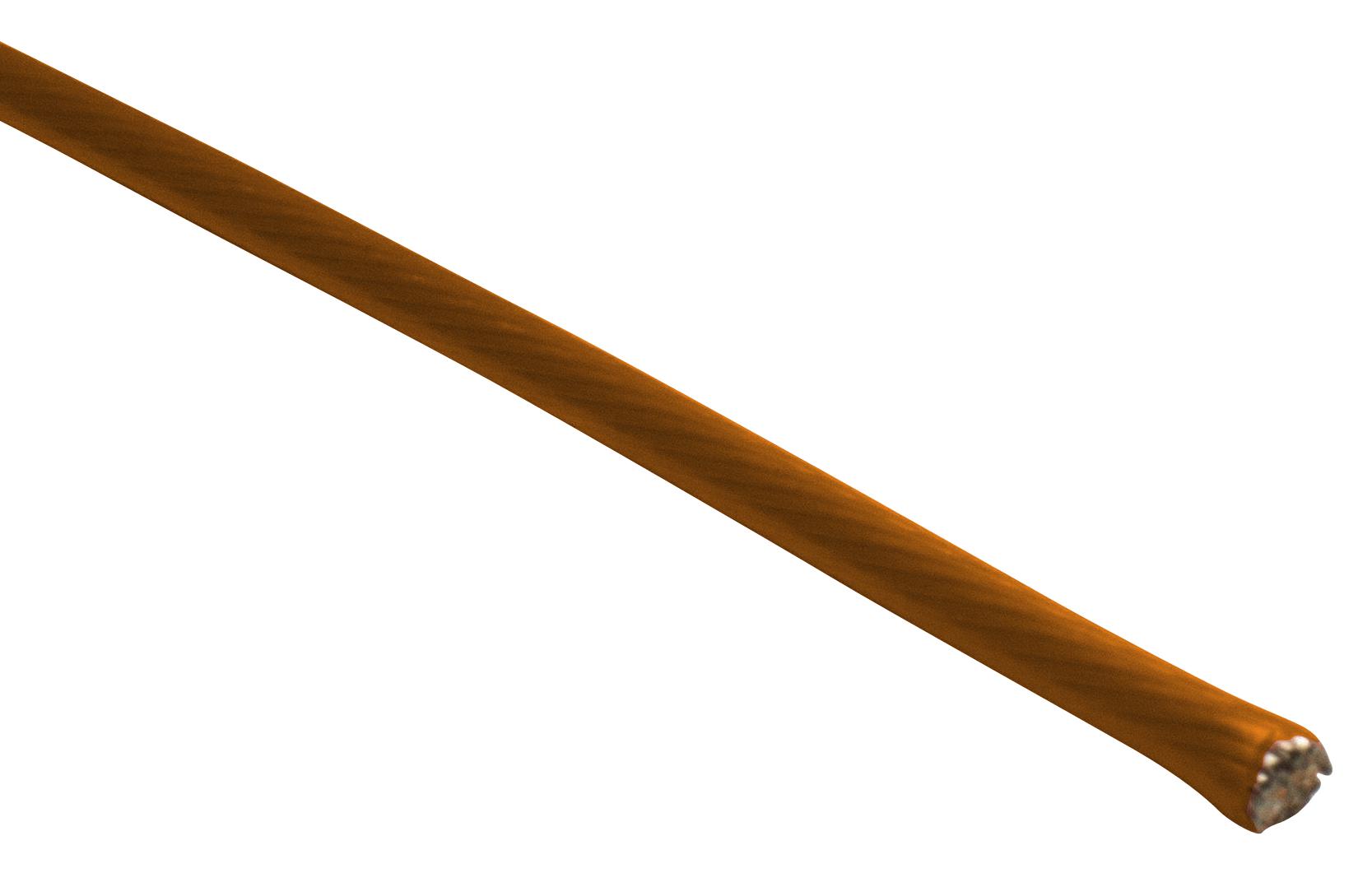

ALPHA WIRE 2620BR001 Electrical Cable
The product is a high-performance electrical wire designed for industrial applications, featuring a 0.007" wall PFA insulation in multiple colors including white, black, red, green, yellow, blue, brown, and orange. It operates within a temperature range of -150°C to 300°C, supports a voltage rating of 600V, and has excellent chemical, water, and sunlight resistance. Certified compliant with UL 11905, RoHS 3, and REACH, it provides reliable electrical conductivity with a conductor DCR of 9.9 ohms per 1000 feet at 20°C, and withstands high pull tension for durable connections.
ALPHA WIRE 2620BR001 Electrical Cable Specifications:
- Construction: Conductor 20 AWG 0.038" copper, Nickel plated; Insulation 0.007" PFA wall thickness, white, black, red, green, yellow, blue, brown, orange
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Inductance: 0.03 H/ft
- Conductor DCR: 9.9 Q/1000ft @20°C
- Bend Radius: 10X cable diameter
- Pull Tension: Max 9.6 Lbs
- Lamp Resistance: UL AWM style 11905, Sunlight, Chemical, Water resistant
- Physical Dimensions: Flank Traverse 6.5 x 2 inches, barrel diameter 1.9 inches; Length options 100 ft / 1000 ft
- Certifications: UL, RoHS 3, REACH, EU Low Voltage Directive 2014/35/EU
- Environmental: Complies with EU RoHS2, RoHS3, and EU Directive 2011/65/EU; free from SVHC substances over 0.1%
Buy the Buy Alpha Wire Part Number 2620BR001 Online
Purchase the Alpha Wire 2620BR001 online today to secure a high-performance cable with excellent chemical, water, and sunlight resistance, rated for 600V, and suitable for demanding industrial environments. This versatile wire features a 0.007" PFA insulation and operates in temperatures from -150°C to 300°C, ensuring durability and safety in your electrical installations. With UL certification and compliance with RoHS and REACH standards, it provides reliability, flexibility, and long-lasting connections. Order now and enhance your project’s safety and efficiency with our trusted electrical wiring solutions.
Order your Alpha Wire 2620BR001 high-temperature flexible cable today and ensure your electrical projects benefit from premium quality and reliable insulation.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2620BR001?
You can click on the BUY or RFQ button to purchase 2620BR001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2620BR001?
You can download the 2620BR001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2620BR001?
ALPHA WIRE
