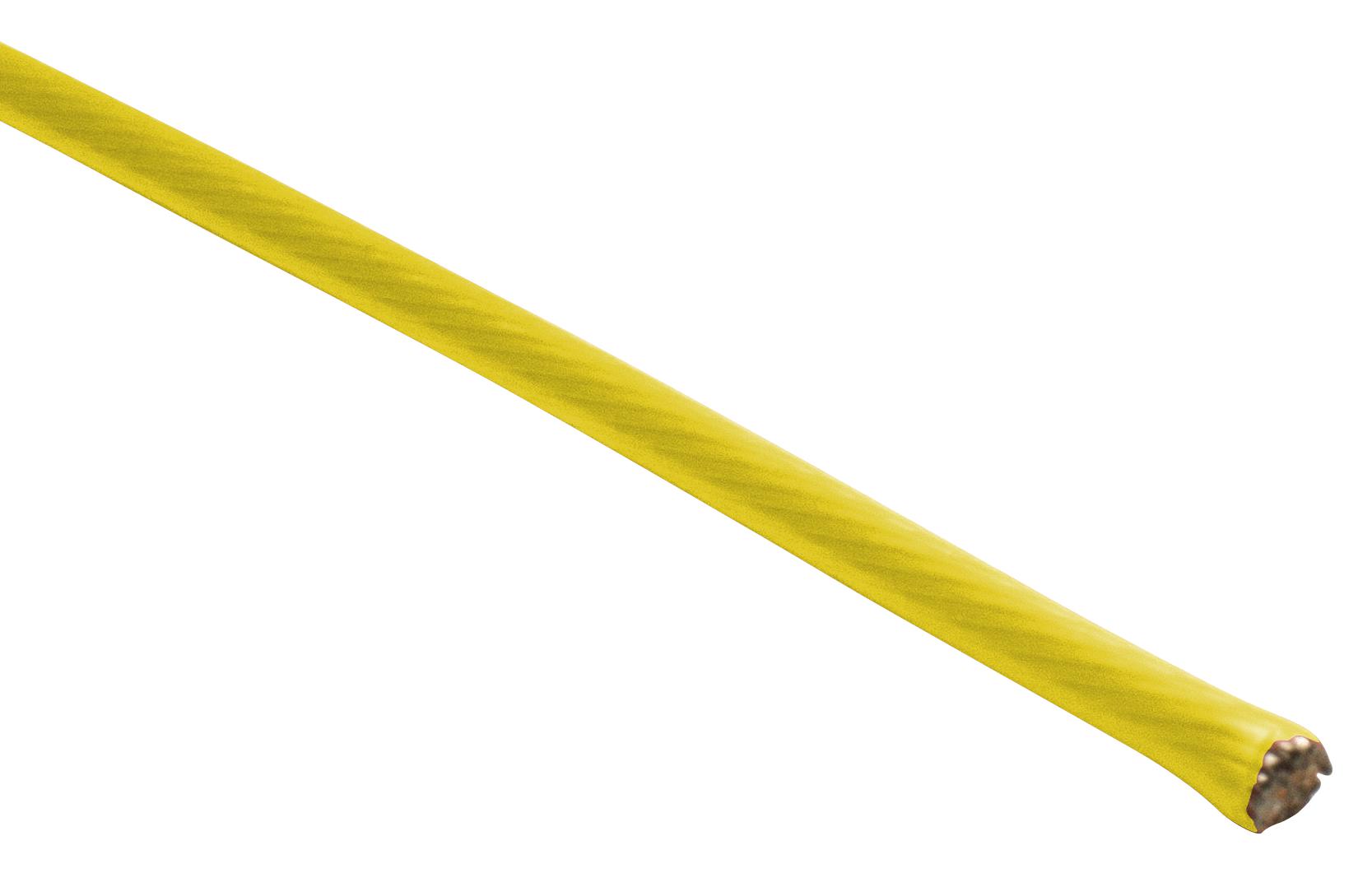

ALPHA WIRE 2620YL005 High-Temperature Hookup Wire
This high-quality, chemically resistant hookup wire features a PFA insulation with a 0.007-inch wall thickness and a conductor diameter of 0.038 inches, suitable for industrial applications demanding reliable electrical performance. It is rated for use at temperatures from -150°C to 300°C, with a voltage rating of 600 V and a maximum pull tension of 9.6 pounds. The wire complies with UL 11905 standards, is sunlight, water, and chemical resistant, and conforms to RoHS and REACH environmental standards, making it ideal for demanding environments requiring durable, premium electrical wiring solutions.
ALPHA WIRE 2620YL005 High-Temperature Hookup Wire Specifications:
- Conductor Diameter: 0.038 inches, AWG 20 (19/32), Nickel Plated Copper
- Insulation Wall Thickness: 0.007 inches, Material: PFA, Color options: white, black, red, green, yellow, blue, brown, orange
- Temperature Range: -150°C to +300°C
- Voltage Rating: 600 V
- Bend Radius: 10X Cable Diameter
- Pull Tension: 9.6 pounds maximum
- Inductance: 0.03 H/ft
- Conductor Resistance (DCR): 9.9 Ohms/1000 ft at 20°C
- Applicable Standards: UL 11905, RoHS, REACH
- Environmental Resistance: Sunlight, Water, Chemical
- Spool Dimensions: 6.5 x 2 x 1.9 inches, 100 ft or 1000 ft lengths
- Physical and Mechanical Properties ensure durability and flexibility in challenging environments.
Buy the Alpha Wire 2620 U– Reliable Industrial Wiring for High-Temperature and Chemical-Resistant Applications
Purchase Alpha Wire 2620 online today for a reliable, high-performance hookup wire designed for demanding industrial environments. With PFA insulation, a conductor diameter of 0.038 inches, and a temperature range from -150°C to 300°C, this wire offers exceptional chemical, water, and sunlight resistance. Rated for 600 V, it’s suitable for critical electrical and electronic applications requiring durability and safety. Available in various lengths, it ensures easy sourcing for your projects. Trust Alpha Wire for precision and long-lasting durability in every application.
Get Alpha Wire 2620 today—built for durability, high temperature resistance, and chemical resilience in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2620YL005?
You can click on the BUY or RFQ button to purchase 2620YL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2620YL005?
You can download the 2620YL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2620YL005?
ALPHA WIRE
