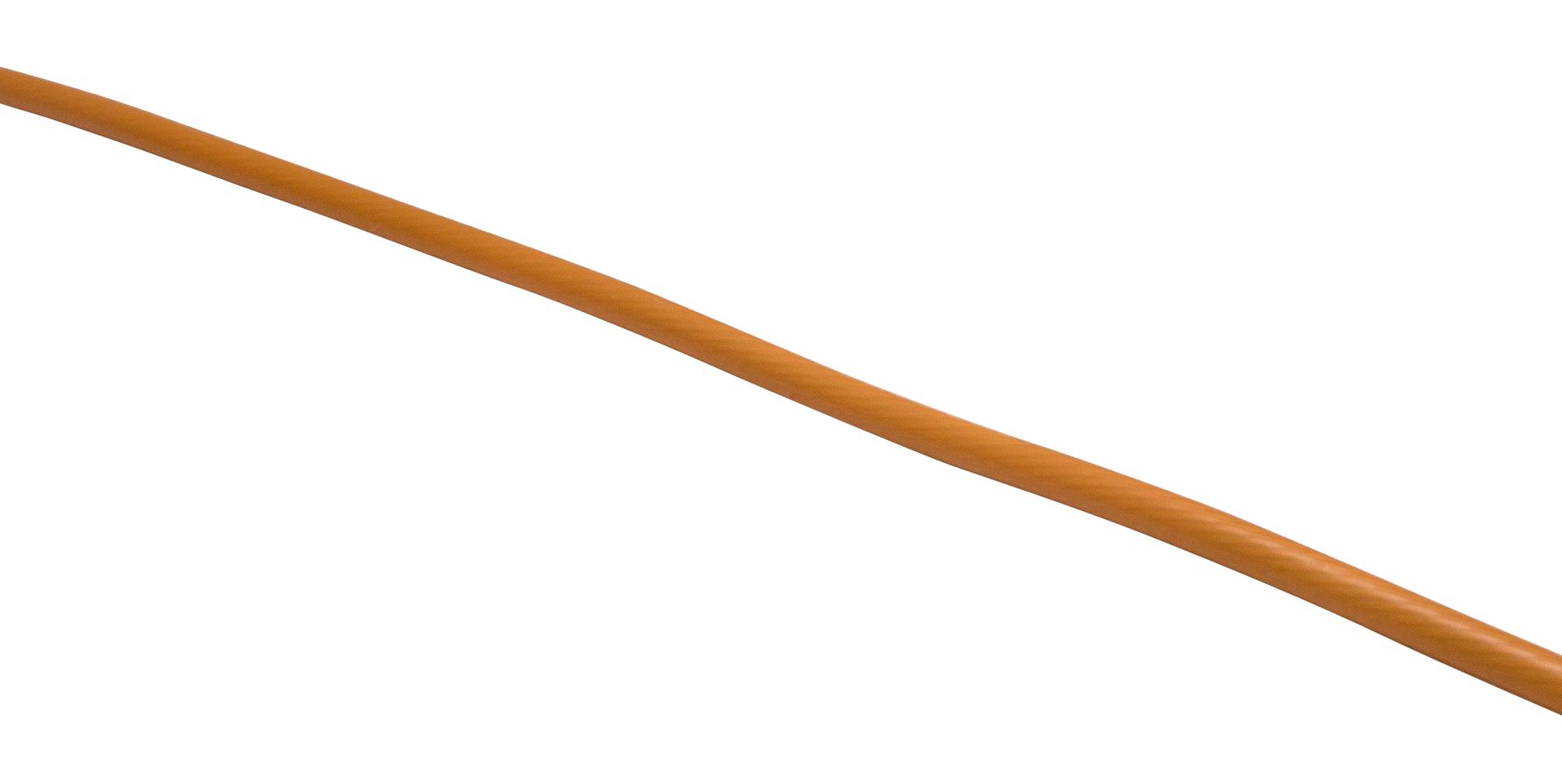

ALPHA WIRE 2622OR005 Hookup Wire
The 2622OR005 is a high-temperature hookup wire with a 22 AWG copper conductor, nickel-plated for enhanced durability, insulated with 0.007" wall PFA in multiple colors including white, black, red, green, yellow, blue, brown, and orange. It’s designed for industrial wiring, capable of operating in temperatures from -150°C to 300°C, with a voltage rating of 600 V. UL listed, sunlight, water, and chemical resistant, this wire suits demanding environments requiring reliable electrical performance and compliance with RoHS, REACH, and EU directives.
ALPHA WIRE 2622OR005 Hookup Wire Specifications:
- Conductor: 22 AWG copper, nickel-plated
- Insulation: PFA, 0.007" wall
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Pull Tension: 5.9 lbs maximum
- Inductance: 0.04 LH/ft
- Conductor DCR: 15.9 Q/1000ft at 20°C
- Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange
- UL Style: 11905, 300°C / 600V
- Environmental Resistance: Sunlight, chemical, water resistant
- Certifications: RoHS, REACH, EU Low Voltage Directive
Buy the Buy Alpha Wire Part Number 2622OR005 Online
Get the Alpha Wire 2622OR005 hookup wire online today for your industrial projects. Features include 22 AWG copper conductors plated with nickel for durability, PFA insulation rated for -150°C to 300°C, and a voltage capacity of 600 V. Its resistance to sunlight, water, and chemicals makes it suitable for harsh environments. Available in multiple colors, this UL-listed wire complies with RoHS, REACH, and EU standards, ensuring high performance, safety, and regulatory compliance for your professional wiring needs.
Order your Alpha Wire 2622OR005 hookup wire today and enhance your electrical systems with reliable, high-temperature performance in demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2622OR005?
You can click on the BUY or RFQ button to purchase 2622OR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2622OR005?
You can download the 2622OR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2622OR005?
ALPHA WIRE
