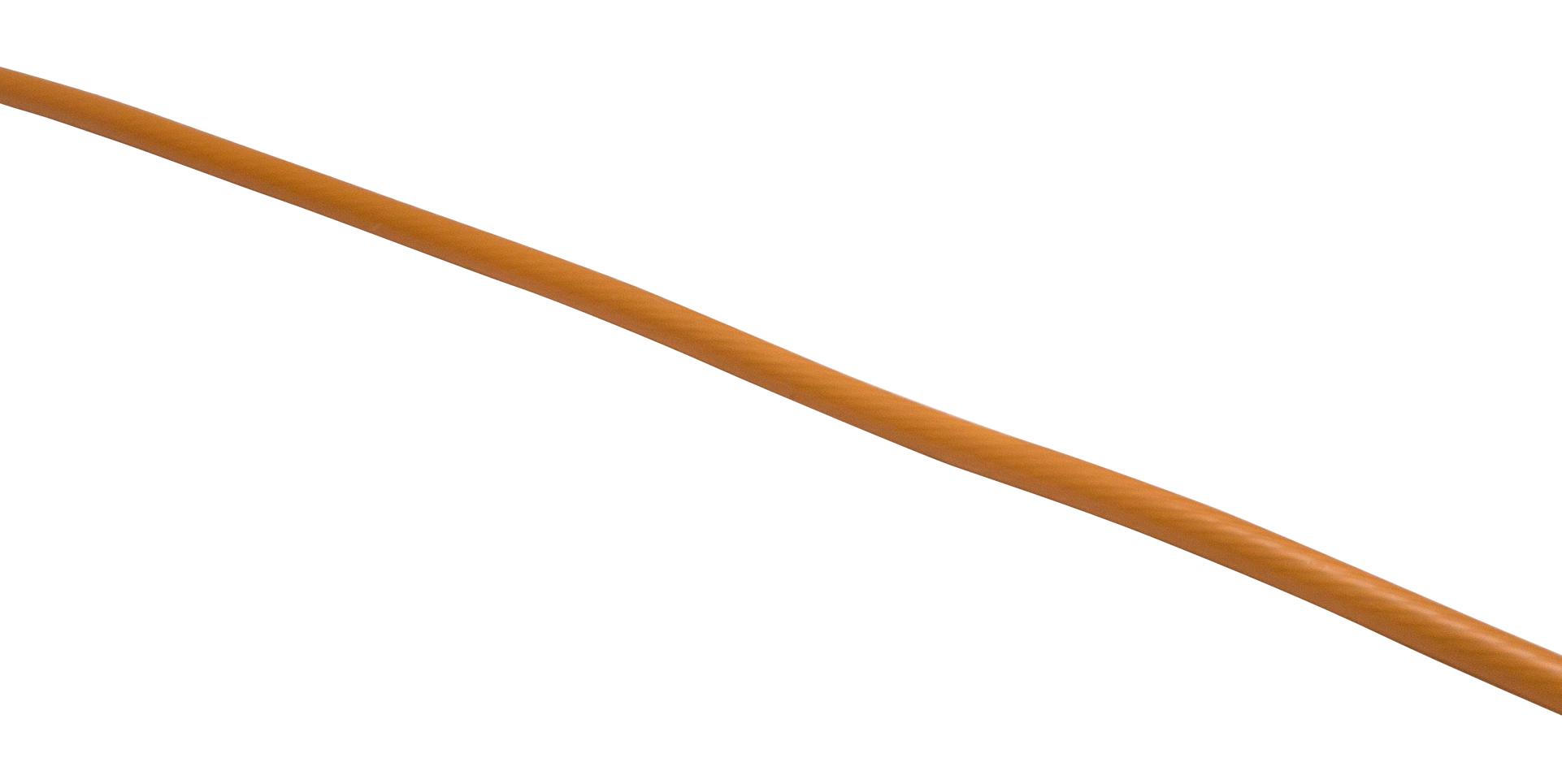

ALPHA WIRE 2624OR001 High Temperature Hookup Wire
This high-performance hookup wire features a 24 AWG copper conductor with a 0.007-inch wall PFA insulation, rated for 300°C and 600 V. It is sunlight, chemical, and water-resistant, making it suitable for industrial and harsh environment applications. Conforming to UL style 11905 standards, the wire includes a nickel-plated conductor for enhanced durability and corrosion resistance. Its flexible design with a bend radius of 10 times the cable diameter allows easy installation in complex wiring systems. Ideal for manufacturing, automation, and electrical installations requiring high temperature and chemical resistance.
ALPHA WIRE 2624OR001 High Temperature Hookup Wire Specifications:
- Conductor: 24 AWG copper, nickel-plated, 0.024 inch diameter
- Insulation: PFA, 0.007 inch wall, white, black, red, green, yellow, blue, brown, orange
- Temperature Rating: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Weight: 3.7 lbs per 1000 ft
- Outer Dimensions: 3.5 x 3 x 1.125 inches (flame-retardant)
- Mechanical: Pull tension, resistance to sunlight, chemicals, and water
- Standards: UL AWM style 11905, compliant with RoHS and REACH regulations
- Environmental: Sunlight resistant, chemical resistant, water resistant, suitable for harsh environments
- Certification: UL Listed, RoHS 2 & 3 compliant, REACH compliant, EU low voltage directive 2014/35/EU
Buy the Alpha Wire 2624 U–Reliable High-Temperature Hookup Wire for Industrial Applications
Purchase Alpha Wire 2624 high-temperature hookup wire online today and enjoy a product designed for demanding industrial environments. Featuring a 24 AWG copper conductor with nickel plating and 0.007-inch PFA insulation, this wire withstands temperatures up to 300°C and voltage of 600 V. Its excellent resistance to sunlight, chemicals, and water makes it ideal for manufacturing, automation, and electrical installations. With UL certification and compliance with RoHS and REACH regulations, this durable wire ensures reliable, long-lasting performance in harsh conditions. Order now for fast delivery and peace of mind.
Get Alpha Wire 2624 today—built for high temperature, chemical resistance, and reliable electrical performance in demanding environments.
