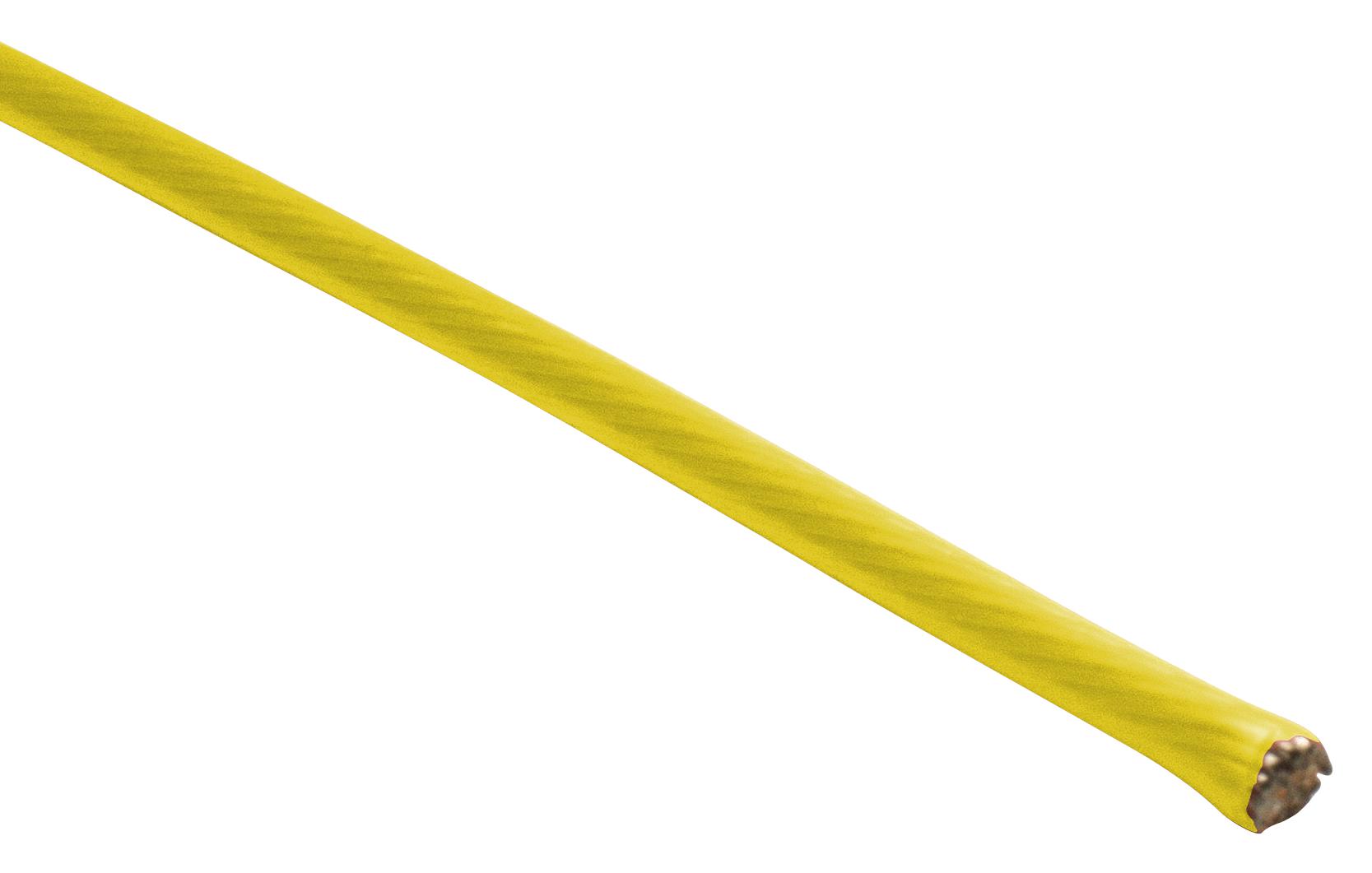

ALPHA WIRE 2624YL005 High-Temperature Control Cable
This cable features 24 AWG conductors with a 0.007-inch wall PFA insulation, rated up to 300°C and 600V. It is UV and chemical resistant, suitable for harsh environments with specifications compliant with UL 11905, RoHS, and REACH standards. Designed with nickel-plated copper conductors, it offers excellent electrical performance, mechanical durability, and flexibility. Its compact dimensions and specified bend radius make it ideal for industrial wiring, control panels, and automation systems where high temperature and chemical resistance are required. The cable is available in multiple colors, including white, black, red, green, yellow, blue, brown, and orange, with consistent insulation and conductor performance.
ALPHA WIRE 2624YL005 High-Temperature Control Cable Specifications:
- Conductor: 24 AWG, 19/36 strands, copper, nickel-plated, 0.024 inch diameter
- Insulation: PFA, 0.007 inch wall thickness, white, black, red, green, yellow, blue, brown, orange
- Voltage Rating: 600 V
- Temperature Range: -150°C to 300°C
- Bend Radius: 10X the cable diameter
- Maximum Lengths: 1000 ft, 100 ft
- Cable Dimensions: 3.5 x 3 x 1.125 inches (spool), 2.75 x 1 x 1.125 inches (continuous length)
- Electrical Resistance: 25 ohms/1000 ft @ 20°C
- Inductance: 0.04 μH/ft, nominal
- Construction: Flawless traverse barrel, flexible cable with continuous lengths
- Certifications: UL, RoHS, REACH compliant
- Water, Sunlight, Chemical resistant, suitable for harsh industrial environments
Buy the Buy Alpha Wire Part Number 2624YL005 Online
Enhance your industrial projects with the Alpha Wire 2624YL005 cable, engineered for durability and high performance. Featuring nickel-plated copper conductors, PFA insulation, and rated for up to 300°C and 600V, this versatile cable resists sunlight, chemicals, and water, making it ideal for harsh environments. Its compact size and flexible design allow easy installation in control panels, machinery, and automation systems. Purchase online now to secure fast delivery of this reliable, UL-listed, RoHS-compliant control cable designed for industrial safety and efficiency that meets stringent standards.
Order your Alpha Wire 2624YL005 high-temperature industrial cable today and ensure reliable performance in demanding environments.
