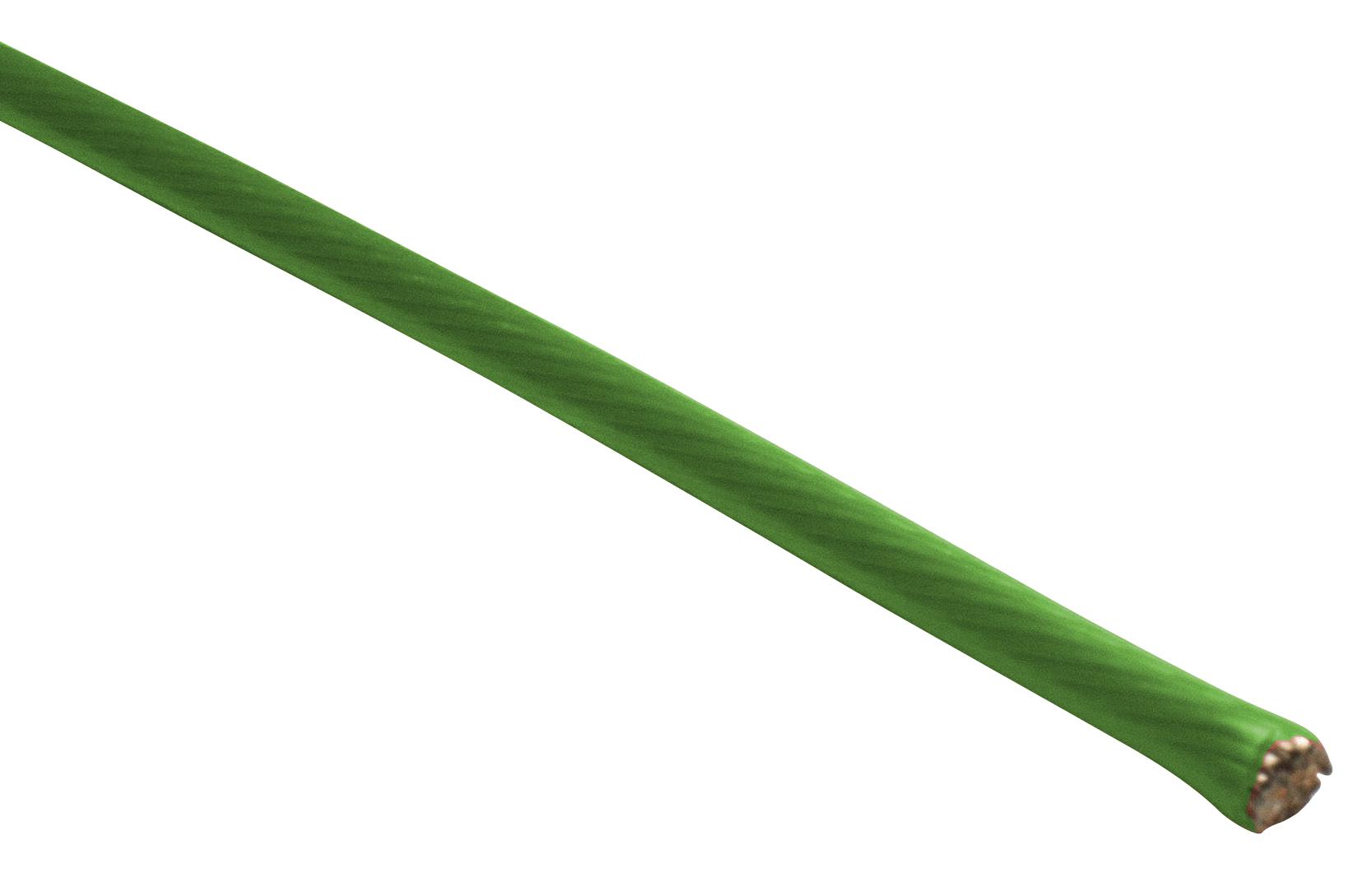

ALPHA WIRE 2626GR001 High-Temperature Hookup Wire
The product is a flexible, high-temperature resistant hookup wire with 26 AWG copper conductors, coated with flame-retardant PFA insulation. Designed for diverse environments, it withstands temperatures from -150°C to 300°C, and complies with UL 11905 standards rated for 600 V. Its exceptional chemical, water, and sunlight resistance makes it ideal for industrial, electronic, and aerospace applications. The wire features a bend radius of 10 times its diameter and a maximum pull tension of 2.39 lbs, ensuring reliability in demanding conditions, with dimensions suitable for various installations.
ALPHA WIRE 2626GR001 High-Temperature Hookup Wire Specifications:
- Conductor Material: Copper, 26 AWG, 19/38 strands, Nickel plated
- Insulation Wall Thickness: 0.007 inches, PFA material
- Temperature Range: -150°C to +300°C
- Voltage Rating: 600 V
- Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 2.39 Lbs
- Inductance: 0.05 pH/ft
- Conductor DC Resistance: 40 Q/1000ft at 20°C
- Color Options: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE
- Applicable Standards: UL AWM 11905, RoHS 2 & 3, REACH, California Prop 65 compliant
- Spool Lengths: 1000 ft or 100 ft
Buy the Alpha Wire Series 711 High-Temperature Hookup Wire: 2626GR001
Purchase the Alpha Wire Series 711 high-temperature hookup wire online today and benefit from superior electrical performance, flexibility, and environmental resistance. Designed for demanding industrial and electronic applications, this 26 AWG copper wire is insulated with flame-retardant PFA, capable of withstanding temperatures from -150°C to 300°C. It complies with UL 11905, RoHS, and REACH standards, ensuring safety and environmental compliance. Reliable, flexible, and resistant to chemicals, water, and sunlight, it's ideal for critical installations requiring durable wiring solutions in challenging conditions, providing peace of mind with every purchase.
Order your Alpha Wire Series 711 high-temperature hookup wire today and ensure your projects operate reliably in harsh environments with premium quality cable.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2626GR001?
You can click on the BUY or RFQ button to purchase 2626GR001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2626GR001?
You can download the 2626GR001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2626GR001?
ALPHA WIRE
