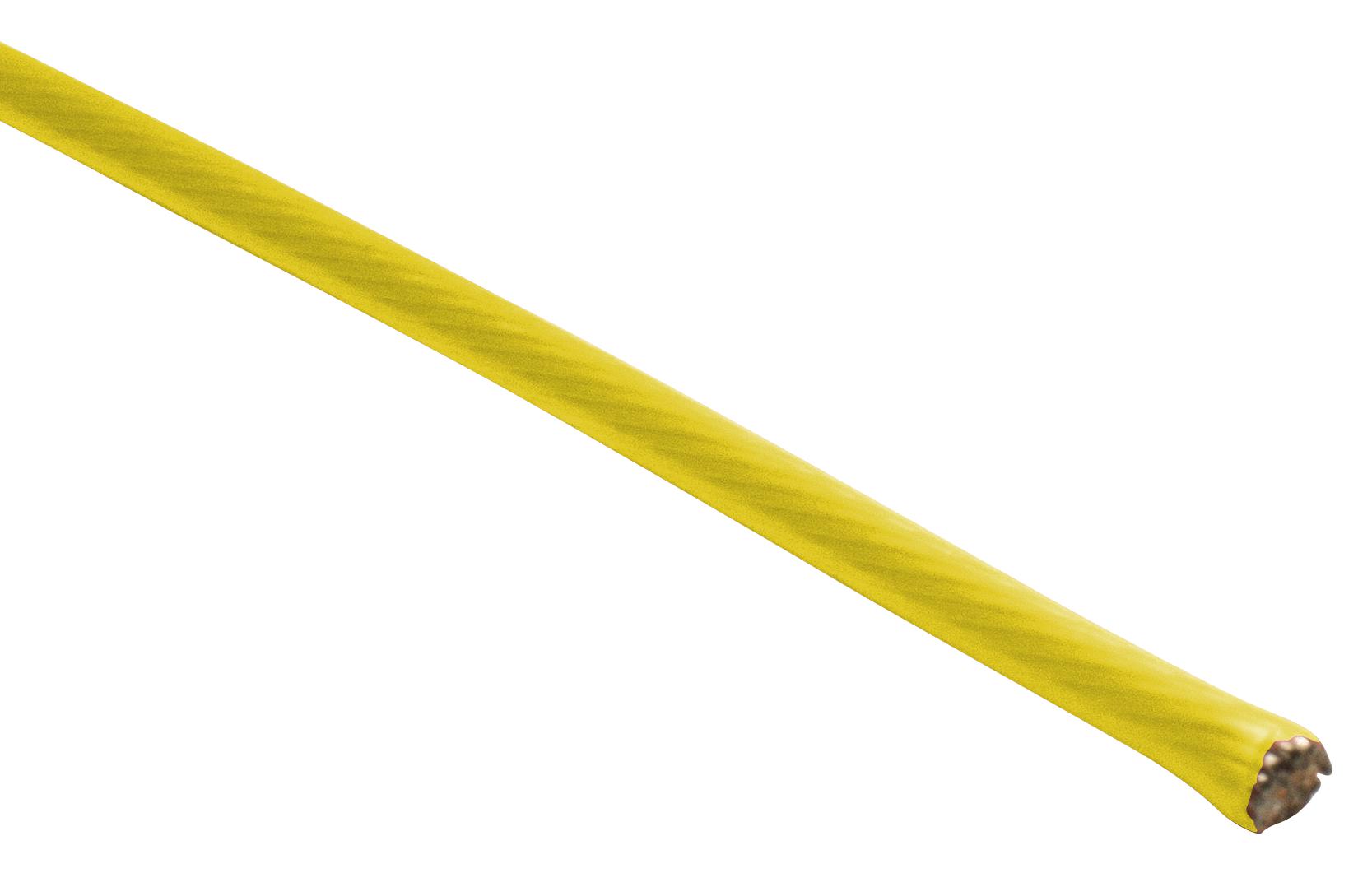

ALPHA WIRE 2630YL001 PFA Hook-Up Wire
The ALPHA WIRE 2630 YL001 is a premium hook-up wire featuring a PFA (Perfluoroalkoxy) insulation jacket over a stranded copper conductor. This construction provides exceptional thermal stability, chemical resistance, and electrical performance. Designed for demanding environments, this wire is suitable for applications requiring high-temperature resistance, such as aerospace, automotive, and industrial equipment. Its RoHS compliance ensures adherence to environmental regulations, making it a responsible choice for modern applications. The wire's flexibility and durability contribute to its long-term reliability in challenging conditions.
ALPHA WIRE 2630YL001 PFA Hook-Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 30 (7/38) AWG 10% Nickel Plated Copper
- Insulation: 0.006" Wall, Nom. PFA
- Insulation Diameter: 0.024+/- 0.002
- Color(s): WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN ORANGE
- UL Rating: AWM/STYLE 11905, 300°C / 600 VRMS
- Temperature Range: -150 to 300°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 0.88 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Inductance: 0.06 μH/ft, Nominal
- Conductor DCR: 107 Ω/1000ft @20°C, Nominal
- Packaging (1000 FT): 3.5 x 3 x 1.125 Continuous length
- Packaging (100 FT): 2.75 x 1 x 1.125 Continuous length
Buy the 2630 YL001 ALPHA WIRE PFA Hook-Up Wire | myMectronic
Purchase the ALPHA WIRE 2630 YL001 PFA Hook-Up Wire securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 2630YL001?
You can click on the BUY or RFQ button to purchase 2630YL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2630YL001?
You can download the 2630YL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2630YL001?
ALPHA WIRE
