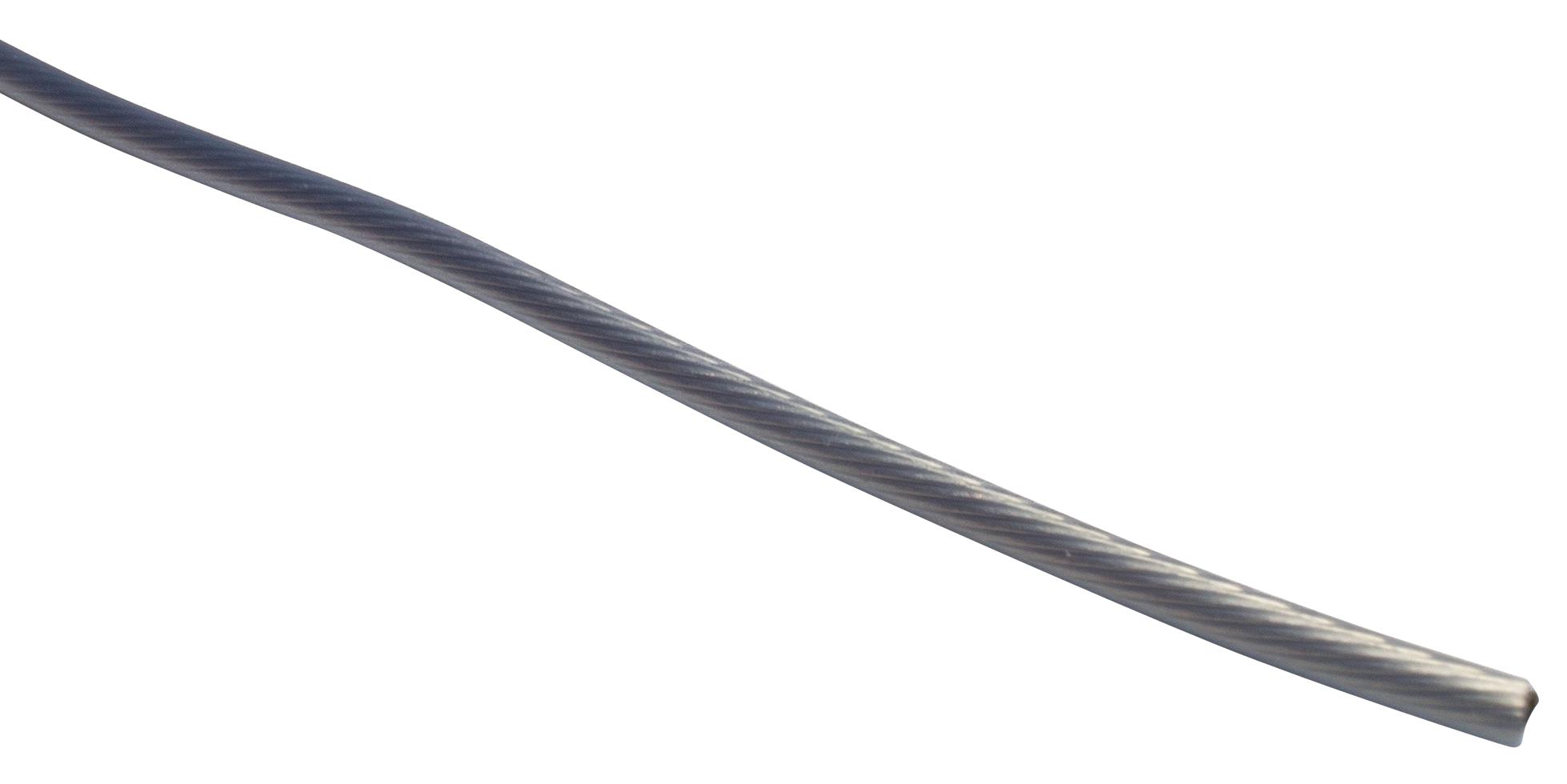

ALPHA WIRE 2636WH001 Electrical Wire
This flexible, high-temperature wire features a 36 AWG solid copper conductor with 0.005 inches diameter, insulated with 0.006-inch wall PFA in multiple colors including white, black, red, green, yellow, blue, brown, and orange. Designed for rigorous environments, it offers excellent chemical, water, and sunlight resistance. With a temperature range from -150°C to 300°C, it supports electrical applications requiring voltage up to 600 V, low inductance, and burn resistance. Suitable for industrial, electronics, and aerospace projects demanding durability and high performance.
ALPHA WIRE 2636WH001 Electrical Wire Specifications:
- Conductor Diameter: 0.005 inches for 36 AWG copper
- Insulation Thickness: 0.006 inches with PFA material
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Inductance: 0.09 LH/ft
- Conductor Resistance: 471 Ω/1000 ft @ 20°C
- Bend Radius: 10X cable diameter
- Maximum Pull Tension: 0.2 Lbs
- Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange
- Bundle Lengths: 1000 feet, 100 feet
- Flammability: Not specified, but PFA provides flame retardance
- Certifications: RoHS, REACH compliant
- Application Environment: Chemical, water, UV resistant, sunlight resistant
Buy the Buy Alpha Wire Part Number 2636WH001 Online
Order Alpha Wire’s high-temperature electrical wire with 36 AWG copper and PFA insulation today. Perfect for industrial, aerospace, and electronics needing chemical, water, and sunlight resistance. With a temperature range from -150°C to 300°C and a voltage rating of 600 V, this wire ensures reliable performance in harsh environments. Its flexibility, multiple colors, and long lengths make it ideal for complex wiring projects. Purchase online now for quick delivery and excellent durability essential for advanced electrical systems.
Buy Alpha Wire 2636WH001 now and experience durable, high-temperature performance for demanding industrial applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2636WH001?
You can click on the BUY or RFQ button to purchase 2636WH001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2636WH001?
You can download the 2636WH001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2636WH001?
ALPHA WIRE
