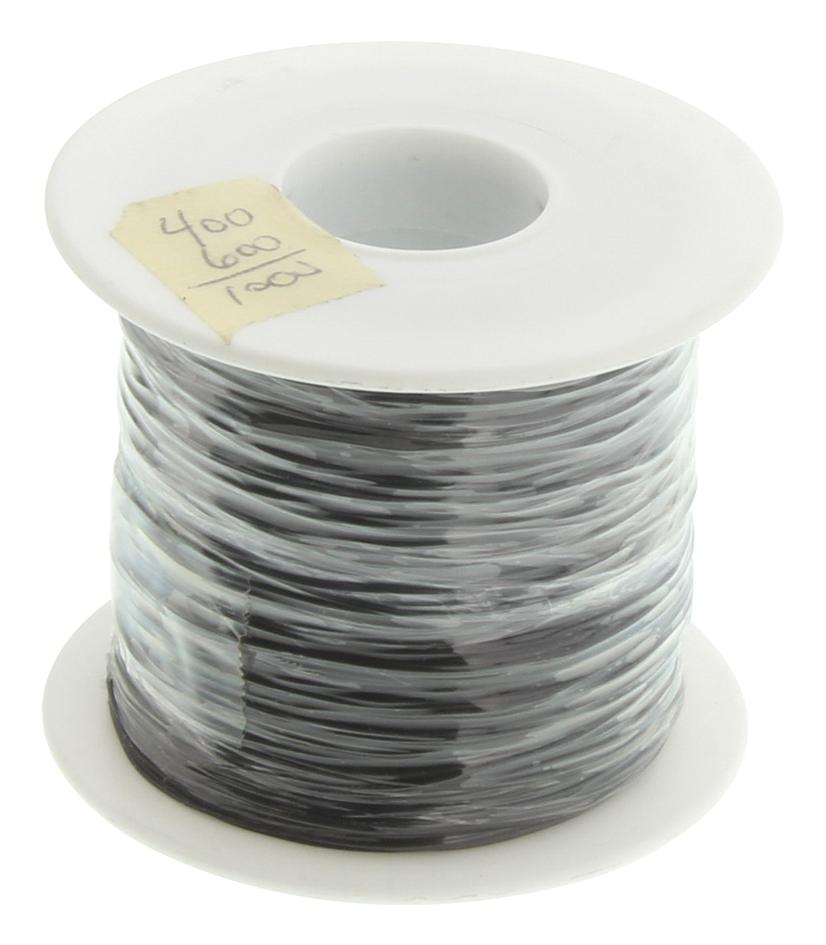

ALPHA WIRE 28407BK001 Hook-up Wire
The ALPHA WIRE 2840/7 BK001 is a high-quality hook-up wire designed for demanding industrial applications. Constructed with 32 AWG stranded tinned copper conductor and a durable PTFE insulation, this wire provides excellent electrical performance and resistance to harsh environments. Its flexible design and wide temperature range (-60°C to 200°C) make it suitable for use in various equipment and systems, including power cords, instrumentation, and control circuits. The wire is RoHS compliant and meets military specification MIL-W-16878/6, ensuring reliability and safety.
ALPHA WIRE 28407BK001 Hook-up Wire Specifications:
- Conductor AWG: 32 (7/40) AWG SPC
- Insulation Material: PTFE
- Insulation Diameter: 0.0065" Wall, Nom.
- Overall Diameter: 0.022"+/- 0.002"
- Colors Available: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE, SLATE, VIOLET
- Temperature Range: -60 to 200°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 0.53 Lbs, Maximum
- Voltage Rating: 250 VRMS
- Inductance: 0.07 µH/ft, Nominal
- Conductor DCR: 157 Ω/1000ft @20°C, Nominal
- Military Specification: MIL-W-16878/6 (Type ET)
- NEMA Specification: HP3-ETXBAB
- Packaging 1000 FT: 2.75 x 2 x 1.125 Max. (3 separate pieces; Min length/piece 100 FT)
- Packaging 100 FT: 2.75 x 1 x 1.125 Continuous length
- RoHS Compliant: Yes
- REACH Compliant: Yes
- California Proposition 65: Compliant
Buy the 2840/7 BK001 ALPHA WIRE Hook-up Wire | myMectronic
Purchase the ALPHA WIRE 2840/7 BK001 hook-up wire securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 28407BK001?
You can click on the BUY or RFQ button to purchase 28407BK001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 28407BK001?
You can download the 28407BK001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 28407BK001?
ALPHA WIRE
