ALPHA WIRE 28411BL005 Control Wire

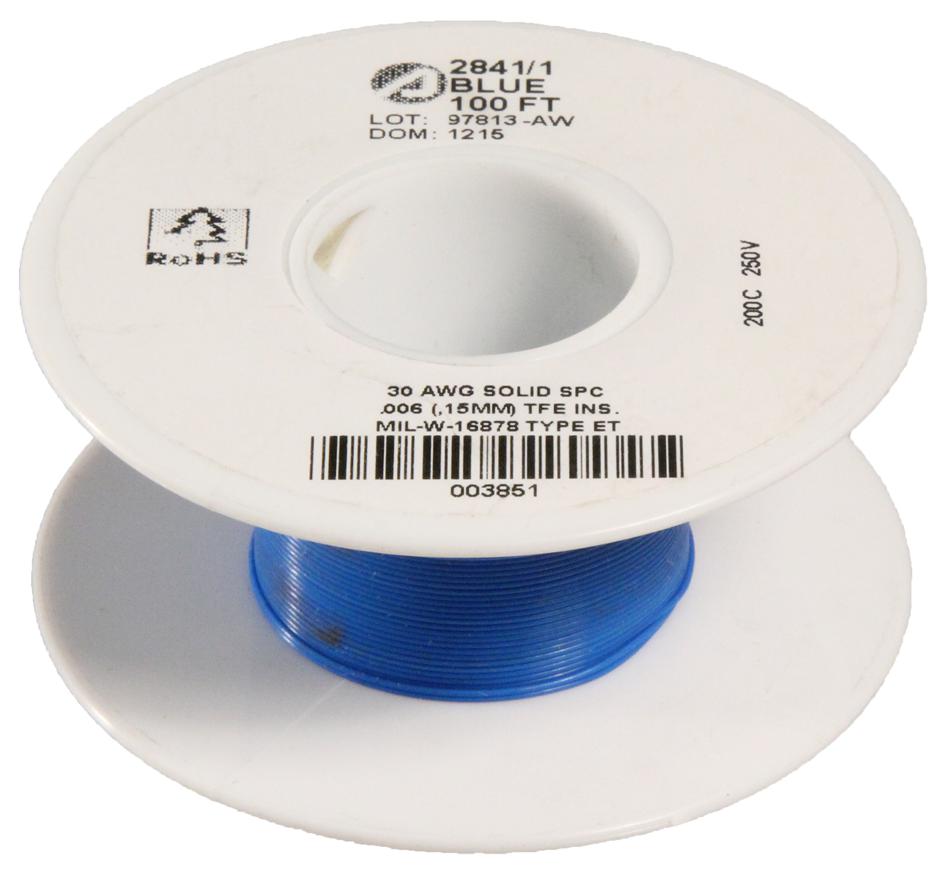

The 2841/1 BL005 is a 100-foot long blue hookup wire featuring a solid silver-plated copper conductor and PTFE insulation. Designed for use in control cabinets within protected environments, it is suitable for machine tools, high-temperature ovens, and off-road construction equipment. This wire is resistant to wear, abrasion, oil, solvents, and chemicals, providing reliable electrical performance across a temperature range of -60 to 200°C. It has a maximum pull tension of 0.79 lbs and a nominal inductance of 0.06 microhenries per foot. The wire complies with NEMA HP3-ETXBBA standards and is ideal for defense, military, aerospace, and industrial applications.
ALPHA WIRE 28411BL005 Control Wire Specifications:
- Conductor Material: Silver-plated copper
- Insulation Material: PTFE (Polytetrafluoroethylene)
- Wire Length: 100 feet
- Color: Blue
- Temperature Range: -60°C to +200°C
- Pull Tension: 0.79 lbs
- Voltage Rating: 250 V
- Inductance: 0.06 µH/ft
- Conductor Diameter: 0.010 inches
- Insulation Wall Thickness: 0.006 inches
- Applicable Standards: MIL-W-16878/6 (Type ET), NEMA HP3-ETXBBA
- Environmental Compliance: RoHS2, REACH, California Proposition 65
- Bend Radius: 10X Cable Diameter
- Maximum Spool Length: 1000 ft
- Outer Dimensions (Spool): 2.75 x 2 x 1.125 inches (max)
- Core Material: Solid copper
- Temperature Tolerance: -60°C to +200°C
Buy the AlphaWire Series 2841 Control Wire: 2841/1 BL005
Order the AlphaWire 2841/1 BL005 control wire online today to ensure high-quality electrical connections in critical environments. This 100-foot blue hookup wire features a solid silver-plated copper conductor and PTFE insulation, providing resistance to wear, chemicals, and high temperatures. Designed for control cabinets, machinery, ovens, and off-road equipment, it maintains excellent flexibility and performance from -60°C to 200°C. With compliance to industry standards, secure your supply chain and enjoy fast, reliable shipping with our easy online purchasing process.
Buy AlphaWire 2841/1 BL005 now and experience unmatched reliability and performance in demanding control and industrial applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 28411BL005?
You can click on the BUY or RFQ button to purchase 28411BL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 28411BL005?
You can download the 28411BL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 28411BL005?
ALPHA WIRE
