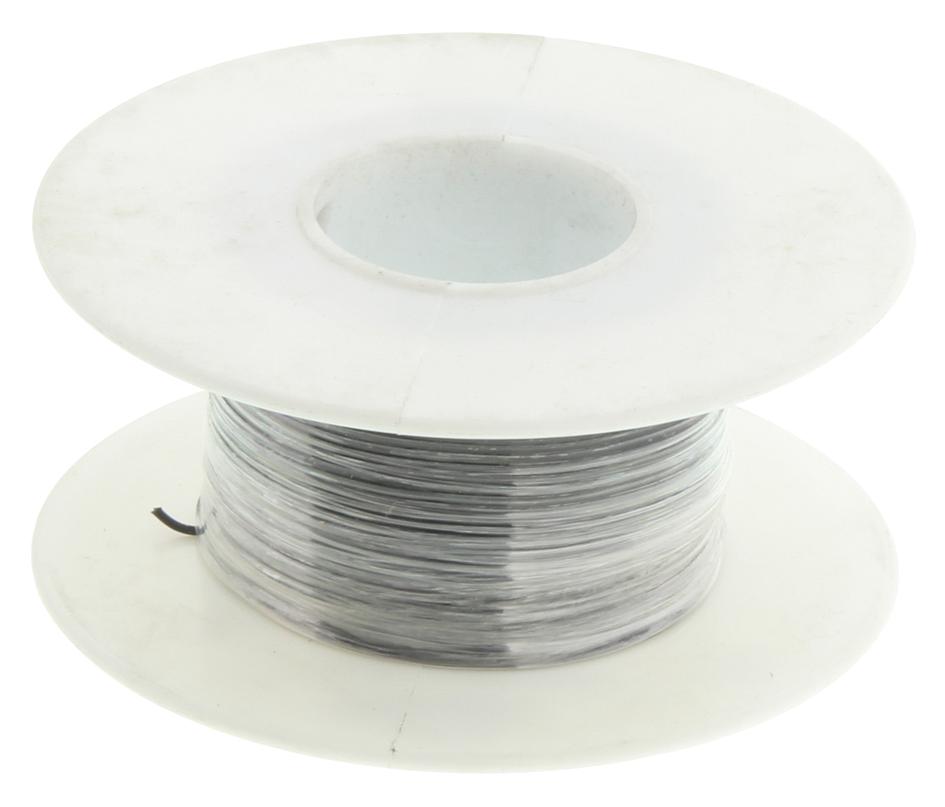

ALPHA WIRE 28437BK005 Hook-up Wire
The 2843/7 BK005 is a 100-foot black hook-up wire with a silver-plated copper conductor and PTFE insulation. Suitable for control cabinets, machinery, high-temperature ovens, and off-road equipment, it offers durability against wear, abrasion, and chemical resistance. It features a maximum pull tension of 2.18 pounds, complies with NEMA HP3-EXBDB standards, has a nominal inductance of 0.04 microhenries per foot, and operates between -60°C and 200°C. Ideal for defense, military, aerospace, and industrial applications, ensuring reliable electrical performance in demanding environments.
ALPHA WIRE 28437BK005 Hook-up Wire Specifications:
- Conductor Material: Silver-plated copper
- Insulation Material: PTFE
- Insulation Thickness: 0.006 inches wall
- Conductor Diameter: 0.019 inches (26 AWG)
- Temperature Range: -60°C to 200°C
- Maximum Pull Tension: 2.18 lbs
- Voltage Rating: 250 V
- Inductance: 0.04 microhenries per foot
- Conductor Resistance: 38 ohms per 1000 feet at 20°C
- Applicable Standards: MIL-W-16878/6 (Type ET), NEMA HP3-EXBDB
- Cable Length Options: 1000 ft (3.5 x 3 x 1.125 max), 100 ft (2.75 x 1 x 1.125 continuous)
- Environmental Compliance: RoHS 2 & 3, REACH, China RoHS
- Color: Black (other colors available by special order)
Buy the Buy AlphaWire Part Number 28437BK005 Online
Purchase the AlphaWire 28437BK005 hook-up wire online today for reliable performance in demanding environments. Its silver-plated copper conductor and PTFE insulation ensure excellent electrical properties, chemical resistance, and durability. Ideal for control cabinets, machinery, ovens, and off-road equipment, this wire handles temperatures from -60°C to 200°C with maximum tension of 2.18 pounds. Available in 100-foot lengths, it complies with military and industrial standards, making it perfect for defense, aerospace, and industrial applications. Order now for fast delivery and quality assurance.
Buy AlphaWire 28437BK005 now and experience unmatched durability and high-temperature resistance for industrial and military wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 28437BK005?
You can click on the BUY or RFQ button to purchase 28437BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 28437BK005?
You can download the 28437BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 28437BK005?
ALPHA WIRE
