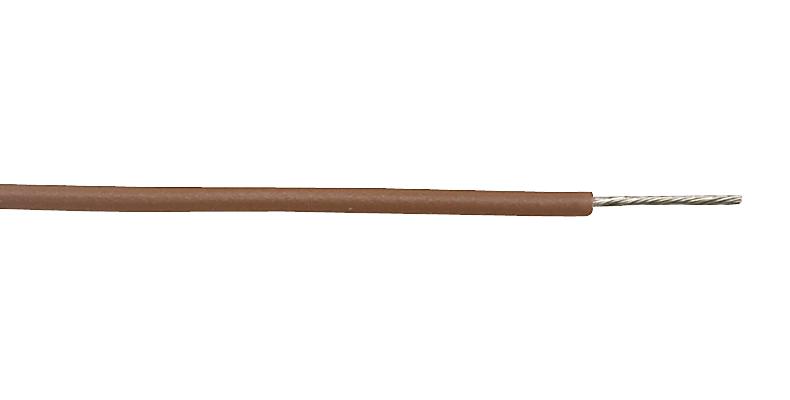

ALPHA WIRE 3081BR005 Electrical Wire
This high-quality electrical wire is designed for industrial and automation applications, featuring durable PVC insulation, a temperature rating of -40 to 105°C, and a voltage rating of 600V. Constructed with flexible copper conductors and available in various colors, it offers excellent electrical properties such as low inductance and conductor resistance, suitable for reliable power and control wiring. The wire complies with UL and CSA standards, including VW-1 flame retardancy and RoHS compliance, ensuring safety and environmental compatibility across diverse industrial environments.
ALPHA WIRE 3081BR005 Electrical Wire Specifications:
- Conductor: 10 AWG (105/30) TC, flexible copper
- Insulation: PVC, 0.032 inch wall thickness
- Voltage Rating: 600V
- Temperature Range: -40°C to 105°C
- Flammability Rating: VW-1
- Inductance: 0.04 wH/ft
- DC Resistance: 1.08 ohms per 1000 feet @20°C
- Bend Radius: 5X cable diameter
- Pull Tension: Max 82 lbs
- Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
- Standards & Certifications: UL (style 1015/1230), CSA (TEW-105), RoHS, REACH
- Environmental Compliance: RoHS 2/3, China RoHS
- Physical Dimensions: Varying lengths with spool dimensions approximately 12 x 6 x 3.5 inches for 1000 ft spool, and other configurations
- Application: Suitable for control and power wiring in industrial, automation, and electronic systems
Buy the AlphaWire Series Electrical Wire 3081BR005: Durable Industrial Power Cable
Experience the superior quality of AlphaWire 3081 electrical wire for your industrial and automation needs. With a 600V rating, flexible copper conductors, and durable PVC insulation, this wire guarantees safety, reliability, and excellent electrical performance. Certified by UL and CSA standards, it ensures compliance and environmental friendliness through RoHS and REACH compliance. Its versatile color options and various lengths make it ideal for diverse applications, from control panels to heavy-duty power systems. Purchase online now to enhance your projects with this trusted industrial wiring solution.
Buy AlphaWire 3081 high-performance electrical wire now and ensure reliable power distribution and control in your industrial projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3081BR005?
You can click on the BUY or RFQ button to purchase 3081BR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3081BR005?
You can download the 3081BR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3081BR005?
ALPHA WIRE
