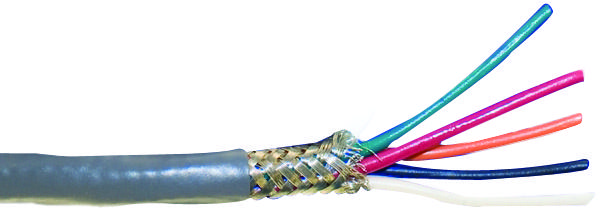

ALPHA WIRE 3211SL002 Control Cable
This high-quality cable assembly is designed for reliable electrical connections in industrial, control, and automation applications. Constructed with 24 AWG stranded conductors insulated with PVC and nylon, it features a braided shield for EMI protection and a durable PVC jacket. The assembly ensures compliance with RoHS 2 and REACH regulations, providing environmental safety. Suitable for various environments, it offers a voltage rating of 600 V, with precise impedance and capacitance specs. Ideal for applications requiring durability, flexibility, and high performance in protected cable configurations.
ALPHA WIRE 3211SL002 Control Cable Specifications:
- Conductor: 24 AWG (19/36), stranded copper
- Insulation: PVC wall 0.010 inches, Nylon wall 0.003 inches
- Shield: TC braid with 90% coverage
- Jacket: PVC, 0.016 inches wall, color Slate
- Outer diameter: approximately 0.159 inches (max 0.171 inches)
- Twists: 8.0 twists per foot min
- Temperature Range: -55°C to +105°C
- Voltage Rating: 600 V
- Capacitance: 42 pF/ft nominal
- Ground Capacitance: 76 pF/ft
- Characteristic Impedance: 520 Ohms
- Inductance: 0.2 µH/ft
- Pull Tension: 10.8 lbs maximum
- Conductor Resistance: 24 Q/1000 ft at 20°C
- Shield Resistance: 6.4 Q/1000 ft at 20°C
- Lengths: Available in 1000 ft, 500 ft, 100 ft spools
- Compliance: RoHS 2, REACH, EU Low Voltage Directive 2006/95/EC
Buy the Alpha Wire Series 3211 Control Cable: 24 AWG Shielded RoHS Compliant
Purchase Alpha Wire Series 3211 control cable online today to ensure high performance and environmental compliance in your industrial applications. This shielded cable features 24 AWG conductors wrapped in PVC and nylon insulation, providing excellent flexibility and durability for control and automation systems. Its robust construction supports up to 600 V, with precise impedance characteristics for signal integrity. Ideal for professional wiring projects, this RoHS-compliant cable ensures safety and reliability, making it the best choice for industrial control environments requiring high-quality wiring solutions.
Buy Alpha Wire Series 3211 control cable now and experience unmatched durability, flexible insulation, and reliable shielding for industrial control wiring.
